BLM90.80.78TOOLS > PRESS BRAKES > Tools > Type R4: Dies > BLM90.100.78LM90.12.78

BLM90.100.78

Article No. Length Weight Price
BLM90.100.78.250 250 mm 17.0
BLM90.100.78.510 510 mm 34.8
BLM90.100.78.550s 550 mm FB 37.5
  • Description
  • Features
  • Attachments

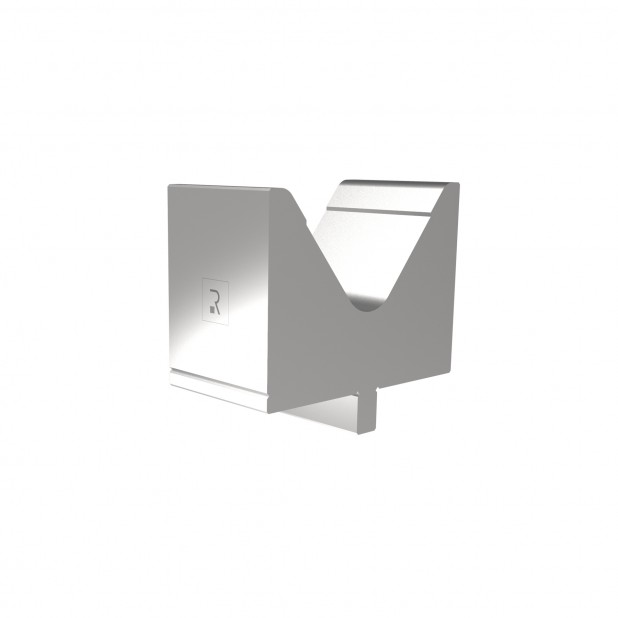

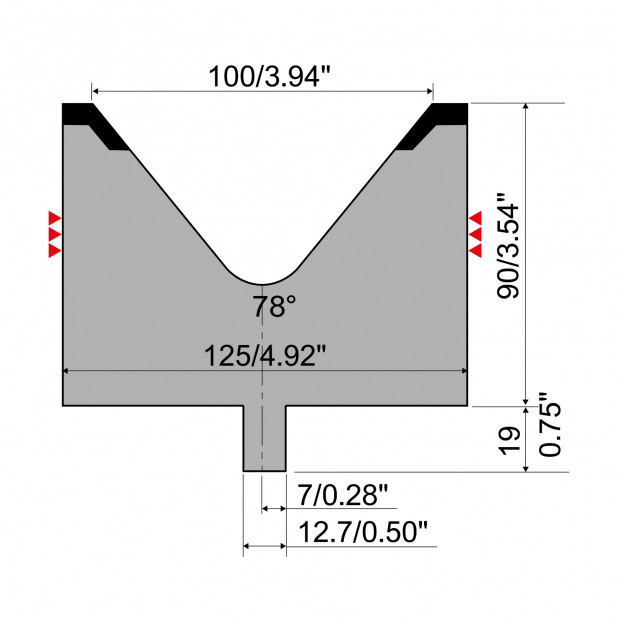

Die R4 type with Working height=90mm, α=78°, Radius=6mm, Material=42Cr, Max. load=2500kN/m.

550 mm F
550 mm FB

BLM model with ground stem
