BLM130.60.78TOOLS > PRESS BRAKES > Tools > Type R4: Dies > BLM130.80.78BLM130.30.60
BLM130.60.78TOOLS > PRESS BRAKES > Tools > Type R4: Dies > BLM130.80.78BLM130.30.60
| Article No. | Length | Weight | Price | |
|---|---|---|---|---|
| BLM130.80.78.250 | 250 mm | 20.80 |
|
|
| BLM130.80.78.510 | 510 mm | 42.5 |
|
|
| BLM130.80.78.550s | 550 mm FB | 45.80 |
|

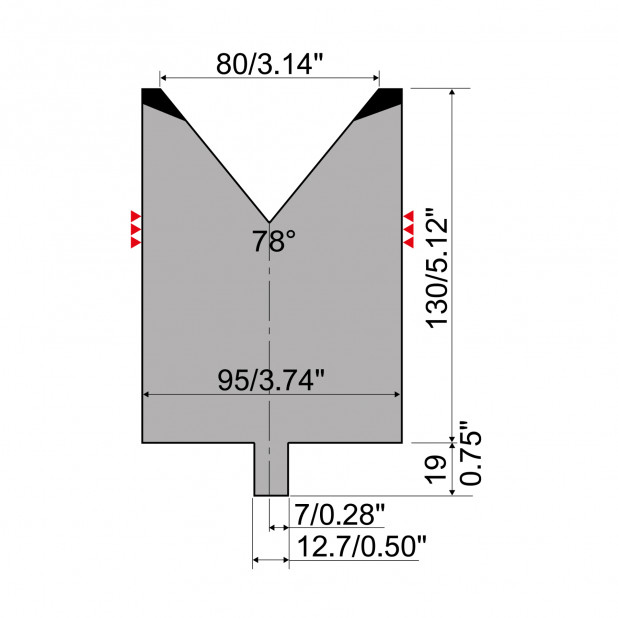

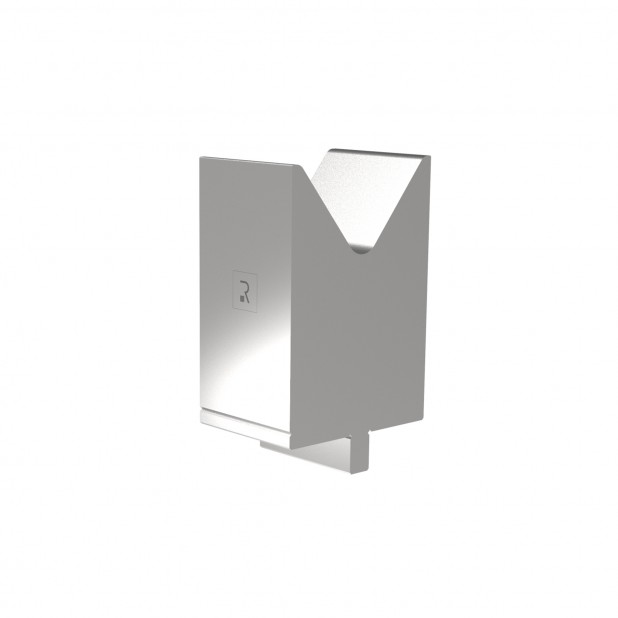

Die R4 type with Working height=130mm, α=78°, Radius=6mm, Material=42Cr, Max. load=2300kN/m.
BLM model with ground stem
