BLM130.12.78TOOLS > PRESS BRAKES > Tools > Type R4: Dies > BLM130.16.78BLM130.20.78

BLM130.16.78

Article No. Length Weight Price
BLM130.16.78.250 250 mm 6.7
BLM130.16.78.510 510 mm 13.6
BLM130.16.78.550s 550 mm FB 14.7
  • Description
  • Features
  • Attachments

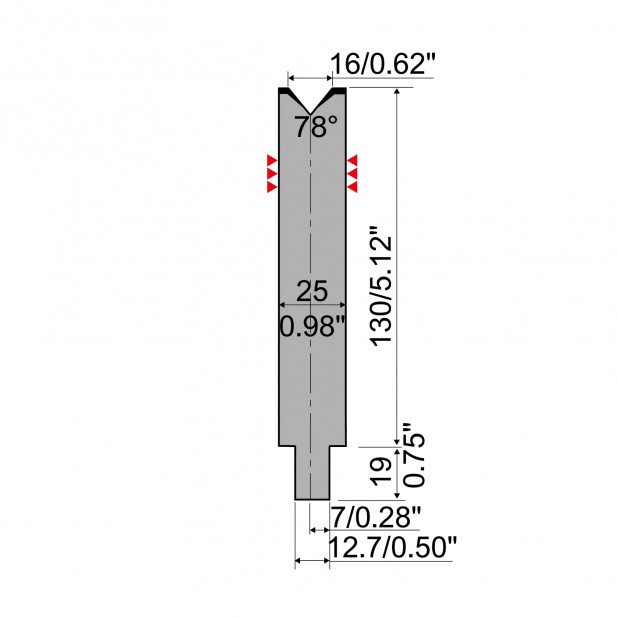

Die R4 type with Working height=130mm, α=78°, Radius=1.6mm, Material=42Cr, Max. load=700kN/m.

550 mm F
550 mm FB

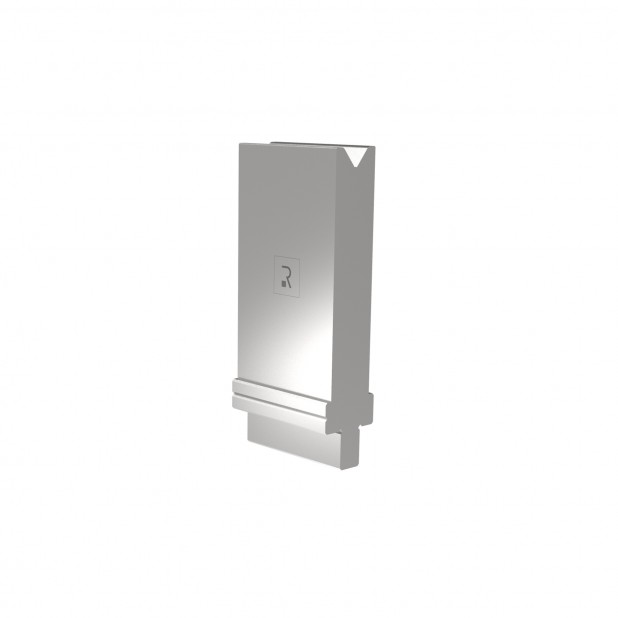

BLM model with ground stem
