TPR256.86.R1

Article No. Length Horn Tang Weight Price
TPR256.86.R1.500_PIN 500 mm 1 PIN 33.00
TPR256.86.R1.500_QL 500 mm 1 QL 33.00
TPR256.86.R1.250s.FC_PIN 250 mm FC 1 PIN 16.50
TPR256.86.R1.250s.FC_QL 250 mm FC 1 QL 16.50
TPR256.86.R1.550s.FW_PIN 550 mm FW 1 PIN 33.0
TPR256.86.R1.550s.FW_QL 550 mm FW 1 ROL1 33.0
TPR256-86-R1/FB1250Q 1250mm FB 1 82.5
TPR256.86.R1/FB2050 2050mm FB 1 136
TPR256.86.R1/FB2550Q 2550mm FB 1 169
TPR256.86.R1/FB3050Q 3050mm FB 1 201.3
TPR256.86.R1/FB4050Q 4050mm FB 1 267.3

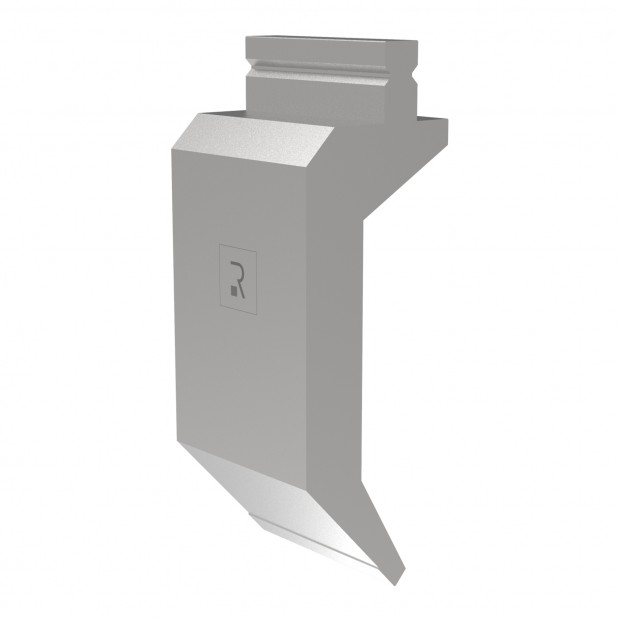

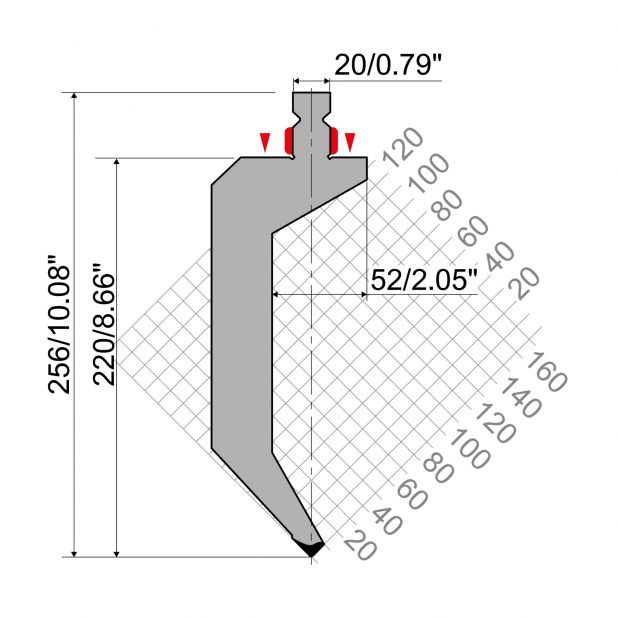

Punch R2 type with Working height=220mm, α=86°, Radius=1mm, Material=42Cr, Max. load=800kN/m.
Punch R2 type with Working height=220mm, α=86°, Radius=1mm, Material=42Cr, Max. load=800kN/m.
  • Description
  • Features
  • Attachments

Punch R2 type with Working height=220mm, α=86°, Radius=1mm, Material=42Cr, Max. load=800kN/m.

Horn 1
250 mm FC
550 mm FW

LOCKING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and sectioned.According to the legislation in the individual countries regarding vertical lifting of weights, it is possible to apply the QL with an extra price.

  • Vertical tool change
  • Easy handling
  • Reduction of costs and setup time

For further information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For further information:
