TPR237.90.R12

Article No. Length Tang Weight Price
TPR237.90.R12.515_PIN 515 mm PIN 19.00
TPR237.90.R12.515_QL 515 mm QL 19.00
TPR237.90.R12.550s.FW_PIN 550 mm FW PIN 20.30
TPR237.90.R12.550s.FW_QL 550 mm FW QL 20.30
TPR237.90.R12.250_QL 250 mm PIN 9.2
TPR237.90.R12.250_PIN 250 mm QL 9.2

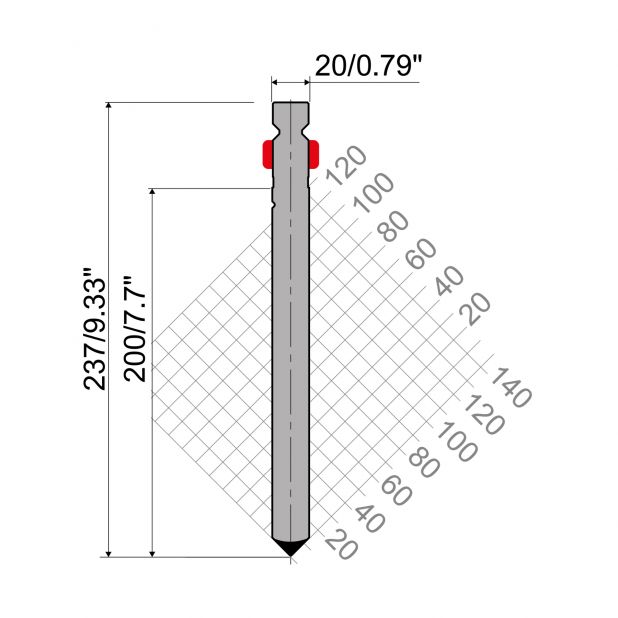

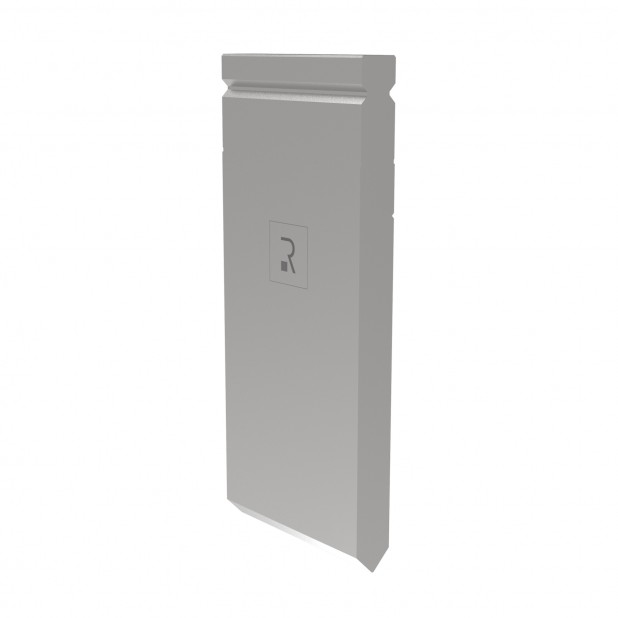

Punch R2 type with Working height=200mm, α=90°, Radius=1,2mm, Material=42Cr, Max. load=1000kN/m.
Punch R2 type with Working height=200mm, α=90°, Radius=1,2mm, Material=42Cr, Max. load=1000kN/m.
  • Description
  • Features
  • Attachments

Punch R2 type with Working height=200mm, α=90°, Radius=1,2mm, Material=42Cr, Max. load=1000kN/m.

550 mm FW
Horn 2

LOCKING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and sectioned.According to the legislation in the individual countries regarding vertical lifting of weights, it is possible to apply the QL with an extra price.

  • Vertical tool change
  • Easy handling
  • Reduction of costs and setup time

For further information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For further information:
