TPR200.60.R1

Article No. Length Horn Weight Price
TPR200.60.R1.100 100 mm 2 3.7
TPR200.60.R1.500 500 mm 2 18.3
TPR200.60.R1.250s 250 mm FC 2 9.2
TPR200.60.R1.550s 550 mm FW 2 20.2

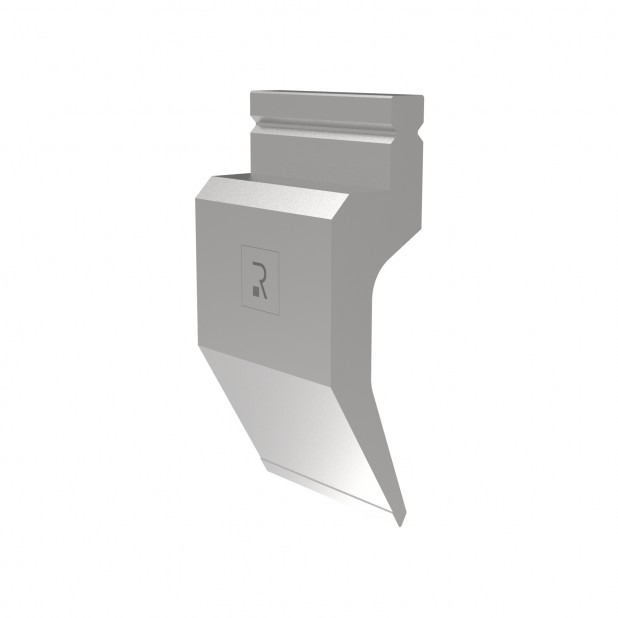

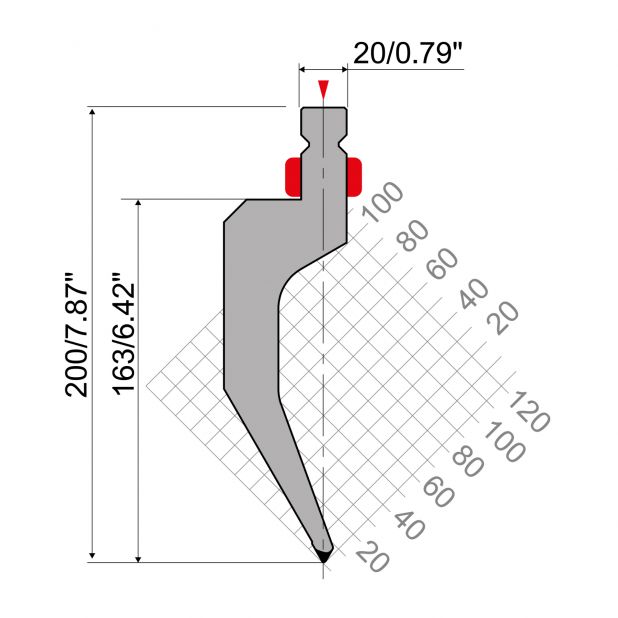

Punch R2 type with Working height=163mm, α=60°, Radius=1mm, Material=42Cr, Max. load=700kN/m.
Punch R2 type with Working height=163mm, α=60°, Radius=1mm, Material=42Cr, Max. load=700kN/m.
  • Description
  • Features
  • Attachments

Punch R2 type with Working height=163mm, α=60°, Radius=1mm, Material=42Cr, Max. load=700kN/m.

Horn 2
250 mm FC
550 mm FW

LOCKING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and sectioned.According to the legislation in the individual countries regarding vertical lifting of weights, it is possible to apply the QL with an extra price.

  • Vertical tool change
  • Easy handling
  • Reduction of costs and setup time

For further information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For further information:
