TPR200.80.R1

Article No. Length Horn Tang Weight Price
TPR200.80.R1.250_QL 250 mm 2 QL 9.20
TPR200.80.R1.250_PIN 250 mm 2 PIN 9.20
TPR200.80.R1.515_PIN 515 mm 2 PIN 19.0
TPR200.80.R1.515_QL 515 mm 2 QL 19.0
TPR200.80.R1.550s.FW_PIN 550 mm FW 2 PIN 21.0
TPR200.80.R1.550s.FW_QL 550 mm FW 2 QL 21.0

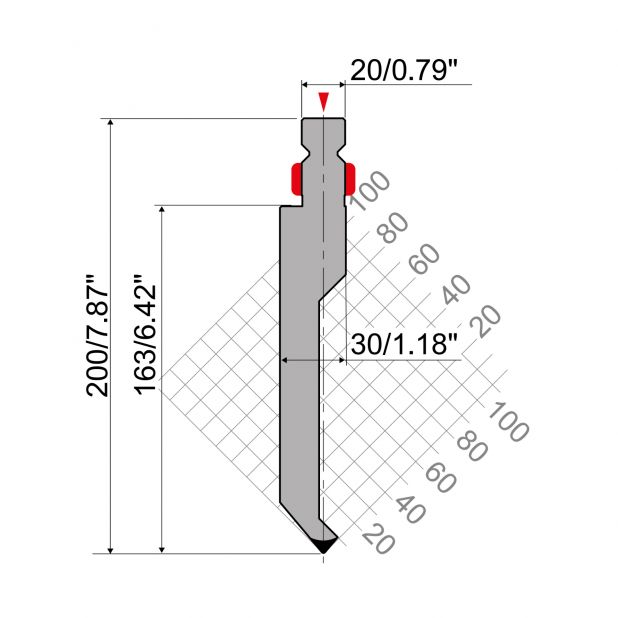

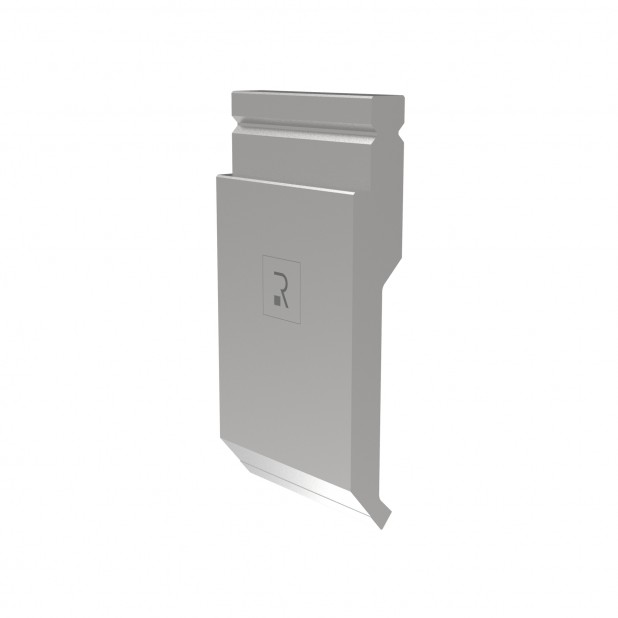

Punch R2 type with Working height=163mm, α=80°, Radius=1mm, Material=42Cr, Max. load=800kN/m.
Punch R2 type with Working height=163mm, α=80°, Radius=1mm, Material=42Cr, Max. load=800kN/m.
  • Description
  • Features
  • Attachments

Punch R2 type with Working height=163mm, α=80°, Radius=1mm, Material=42Cr, Max. load=800kN/m.

550 mm FW
Horn 2

LOCKING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and sectioned.According to the legislation in the individual countries regarding vertical lifting of weights, it is possible to apply the QL with an extra price.

  • Vertical tool change
  • Easy handling
  • Reduction of costs and setup time

For further information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change
