TOPW200.26.R08

Article No. Length Horn Tang Weight Price
TOPW.200.26.R08.250 250 mm 1 QL 6.80
TOPW.200.26.R08.515 515 mm 1 PIN 13.90
TOPW.200.26.R08.550 550 mm FW 1 QL 14.90

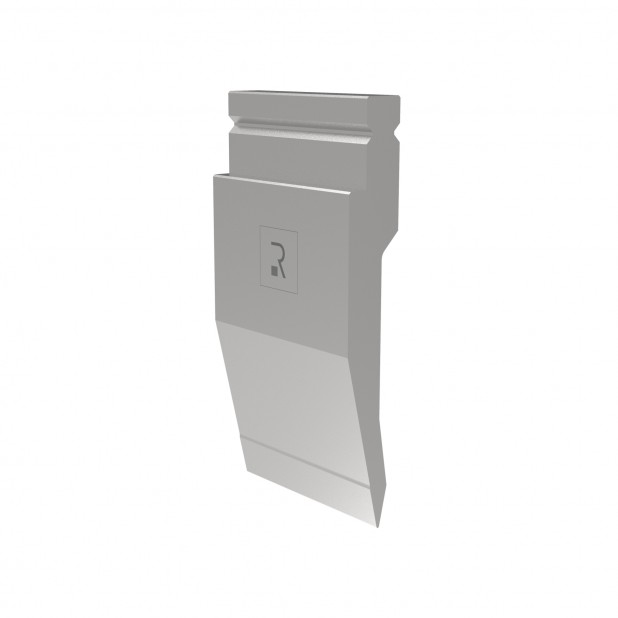

Punch R2 European type TOP Series with Working height=200mm, α=26°, Radius=0,8mm, Material=42cr, Max. load=1
Punch R2 European type TOP Series with Working height=200mm, α=26°, Radius=0,8mm, Material=42cr, Max. load=1
  • Description
  • Features
  • Attachments

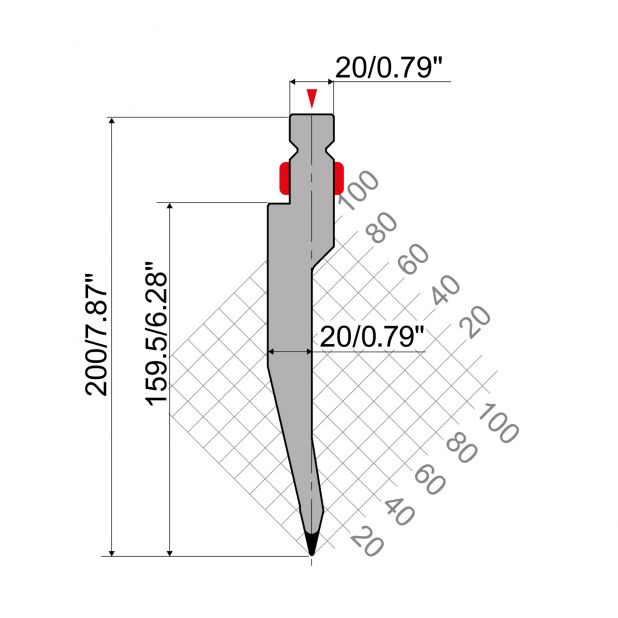

Punch R2 European type TOP Series with Working height=159.5mm, α=26°, Radius=0,8mm, Material=42cr, Max. load=1000kN/m.

Total Height H=200 / 7.87"

Working height W=159.5 / 6.28"

Horn 1
550 mm FW

LOCKING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and sectioned.According to the legislation in the individual countries regarding vertical lifting of weights, it is possible to apply the QL with an extra price.

  • Vertical tool change
  • Easy handling
  • Reduction of costs and setup time

For further information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For further information:
