TPR157.86.R1TOOLS > PRESS BRAKES > Tools > Type R2: Punches > TPR157.86.R1-ATPR200.86.R1

TPR157.86.R1-A

Article No. Length Horn Tang Weight Price
TPR157.86.R1-A.500_QL 500 mm 1/A QL 12.50
TPR157.86.R1-A.500_PIN 500 mm 1/A PIN 12.50
TPR157.86.R1-A.250s.FC_QL 250 mm FC 1/A QL 6.30
TPR157.86.R1-A.250s.FC_PIN 250 mm FC 1/A PIN 6.30
TPR157.86.R1-A.550s.FW_PIN 550 mm FW 1/A PIN 13.80
TPR157.86.R1-A.550s.FW_QL 550 mm FW 1/A QL 13.80
TPR157-86-R1AFB1250Q 1250mm FB 31.25
TPR157-86-R1AFB2050Q 2050mm FB 1/A 51.25
TPR157-86-R1AFB2550Q 2550mm FB 1/A 63.75
TPR157-86-R1AFB3050Q 3050mm FB 1/A 76.25
TPR157-86-R1AFB4050Q 4050mm FB 1/A 101.25

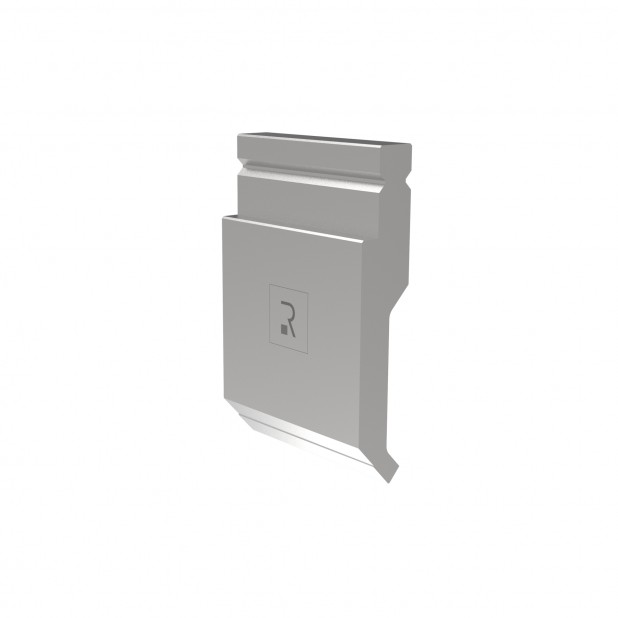

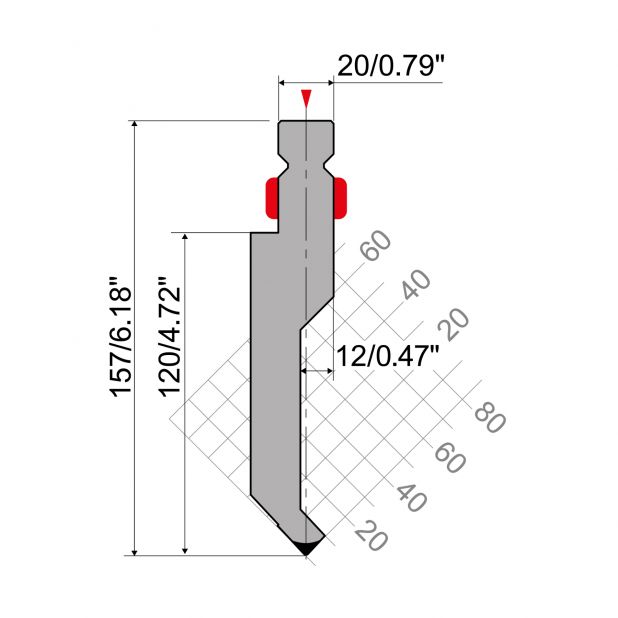

Punch R2 type with Working height=120mm, α=86°, Radius=1mm, Material=42Cr, Max. load=800kN/m.
Punch R2 type with Working height=120mm, α=86°, Radius=1mm, Material=42Cr, Max. load=800kN/m.
  • Description
  • Features
  • Attachments

Punch R2 type with Working height=120mm, α=86°, Radius=1mm, Material=42Cr, Max. load=800kN/m.

250 mm FC
550 mm FW
Horn 1/A

LOCKING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and sectioned. According to the legislation in the individual countries regarding vertical lifting of weights, it is possible to apply the QL with an extra price.

  • Vertical tool change
  • Easy handling
  • Reduction of costs and setup time

For further information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For further information:
