Radius Tools 10-100

Article No.	Length	R [mm]	kN/m max.	Weight
LPW52.60.R5.510	510 mm	5.0	2000	10.4
LPW52.60.R5.250	250 mm	5	2000	5.0
LPW52.60.R5.550s	550mm F	5	2000	11.2
LPW52.60.R6.510	510 mm	6	2400	10.6
LPW52.60.R6.250	250 mm	6	2400	5.2
LPW52.60.R6.550s	550 mm F	6	2400	11.4
LPW52.60.R8.510	510 mm	8	3000	10.9
LPW52.60.R8.250	250 mm	8	3000	5.3
LPW52.60.R8.550s	550 mm F	8	3000	11.7
LPW52.60.R10.510	510 mm	10	3000	11.3
LPW52.60.R10.250	250 mm	10	3000	5.5
LPW52.60.R10.550s	550 mm F	10	3000	12.2
LPW52.60.R12.510	510 mm	12	3000	11.6
LPW52.60.R12.250	250 mm	12	3000	5.6
LPW52.60.R12.550s	550 mm F	12	3000	12.5
LPW52.60.R15.510	510 mm	15	3000	12.0
LPW52.60.R15.250	250 mm	15	3000	5.8
LPW52.60.R15.550s	550 mm F	15	3000	12.9
LPW52.60.R20.510	510 mm	20	3000	12.6
LPW52.60.R20.250	250 mm	20	3000	6.1
LPW52.60.R20.550s	550 mm F	20	3000	13.6
LPW52.60.R25.510	510 mm	25	3000	13.1
LPW52.60.R25.250	250 mm	25	3000	6.4
LPW52.60.R25.550s	550 mm F	25	3000	14.1
LPW52.60.R30.510	510 mm	30	3000	13.4
LPW52.60.R30.250	250 mm	30	3000	6.6
LPW52.60.R30.550s	550 mm F	30	3000	14.4
LPW52.60.R35.510	510 mm	35	3000	19.1
LPW52.60.R35.250	250 mm	35	3000	9.4
LPW52.60.R35.550s	550 mm F	35	3000	20.6
LPW52.60.R40.510	510 mm F	40	3000	19.6
LPW52.60.R40.250	250 mm	40	3000	9.6
LPW52.60.R40.550s	550 mm F	40	3000	21.1
LPW52.60.R5.510	510 mm	50	3000	22.5
LPW52.60.R50.250	250 mm	50	3000	11.0
LPW52.60.R50.550s	550 mm F	50	3000	24.2

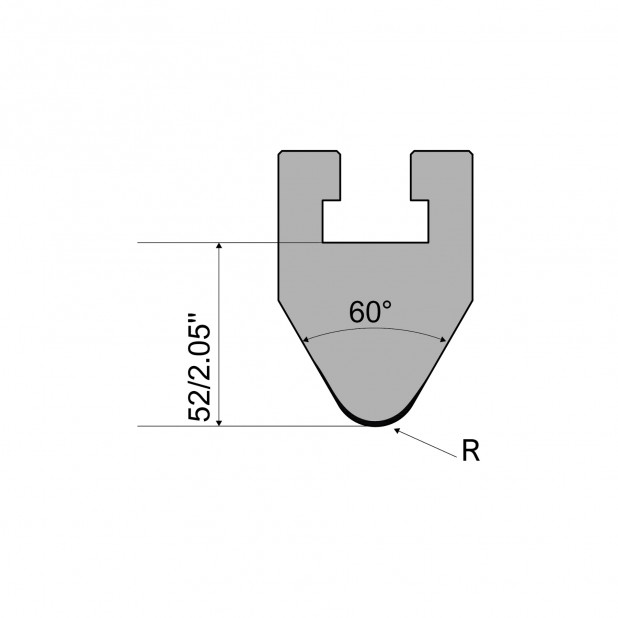

Radius Tool Inserts with Material=c53, Max.Load=3000kN/m.
