LPW.P15.12TOOLS > PRESS BRAKES > Tools > Type R4: Punches > LPW144-200LPW179-200

LPW144-200

Article No. Length Weight Price
LPW144-200.510 510 mm 13.7
LPW144-200.550s 550 mm F 14.8
LPW144-200.250 250 mm 6.7
  • Description
  • Features
  • Attachments

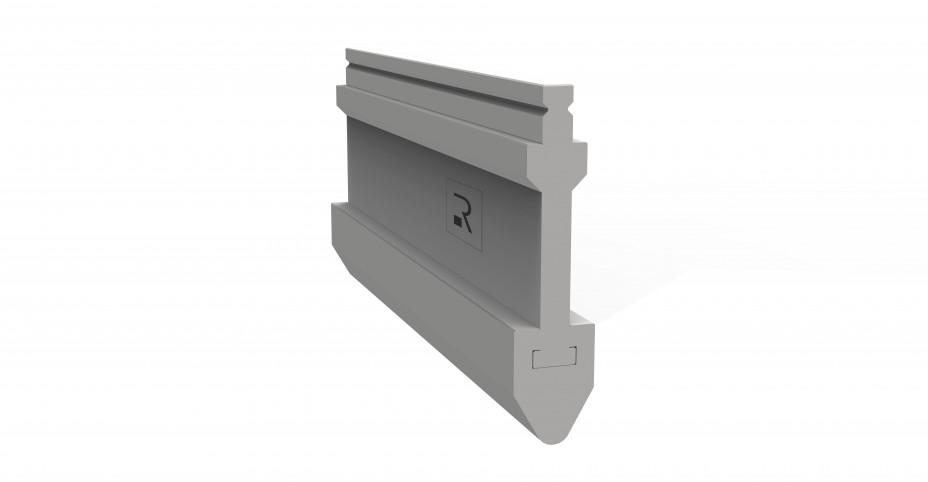

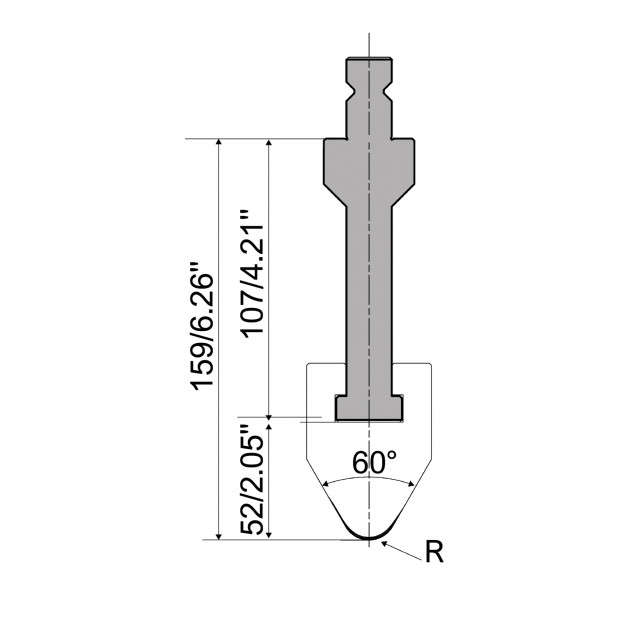

Radius Tool R4 LVD type with Working height=107mm, Material=42Cr, Max. load=2000kN/m.

550 mm F

CLAMPING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and for sectioned. According to the regulations in force in the individual countries regarding vertical weight lifting, the QL can be applied at an extra price.

  • Vertical tool change
  • Simplified manuality
  • Reduction of costs and tooling time

For more information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For more information:
