LPW231.D15-R2TOOLS > PRESS BRAKES > Tools > Type R4: Punches > LPW231.E15-R1LPW231.E15-R2

LPW231.E15-R1

Article No. Length Weight Price
LPW231.E15-R1.510 510 mm 16.5
LPW231.E15-R1.550s 550 mm F 17.9
LPW231.E15-R1.250 250 mm 8.1
  • Description
  • Features
  • Attachments

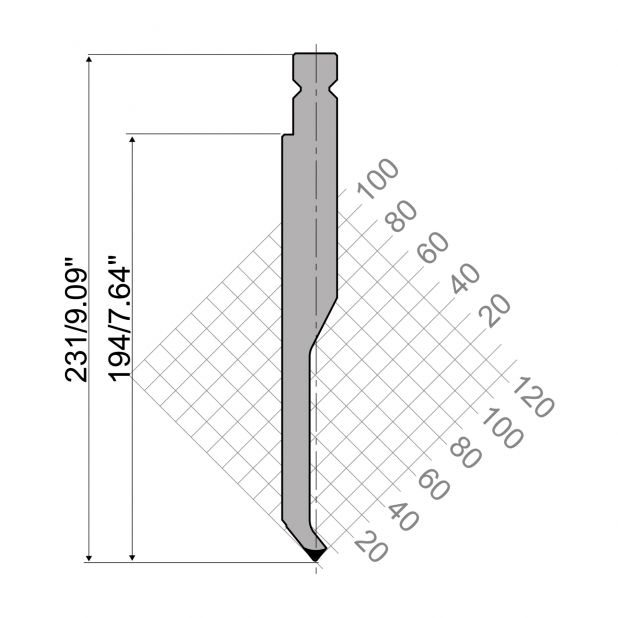

Punch R4 NEW W Series with Working height=194mm, α=78°, Radius=1mm, Material=42cr, Max. load=400kN/m.

W-TYPE

Horn 1
550 mm F

CLAMPING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and for sectioned. According to the regulations in force in the individual countries regarding vertical weight lifting, the QL can be applied at an extra price.

  • Vertical tool change
  • Simplified manuality
  • Reduction of costs and tooling time

For more information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For more information:
