LPW231.J15-R2

Article No. Length Weight Price
LPW231.J15-R2.510 510 mm 12.1
LPW231.J15-R2.550s 550 mm F 13.2
LPW231.J15-R2.250 250 mm 5.9
  • Description
  • Features
  • Attachments

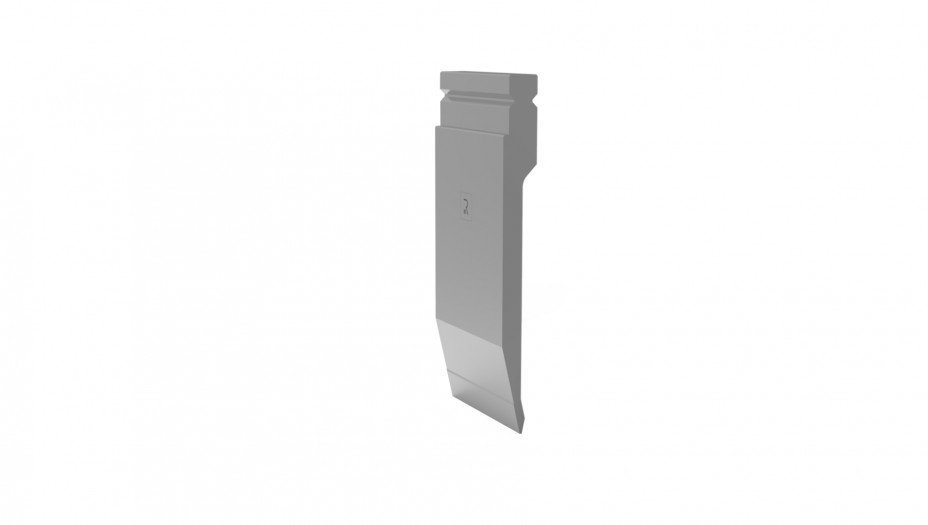

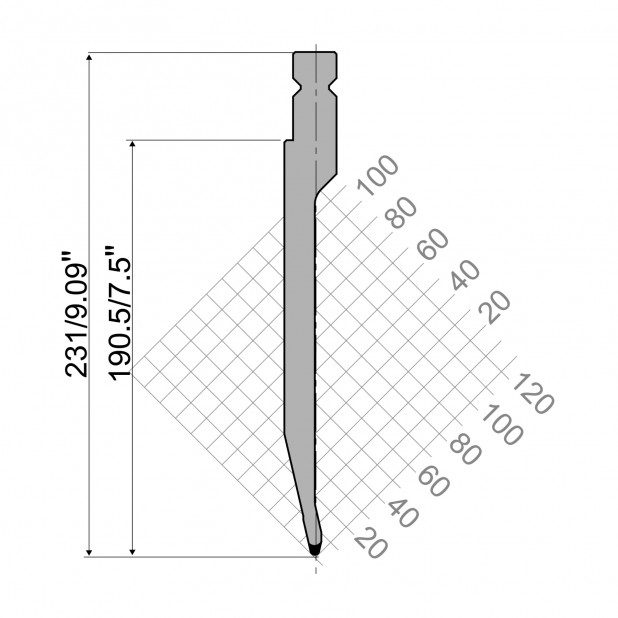

Punch R4 NEW W Series with Working height=190.5mm, α=26°, Radius=2mm, Material=42cr, Max. load=600kN/m.

W-TYPE

W-TYPE
550 mm F
Horn 1

CLAMPING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and for sectioned. According to the regulations in force in the individual countries regarding vertical weight lifting, the QL can be applied at an extra price.

  • Vertical tool change
  • Simplified manuality
  • Reduction of costs and tooling time

For more information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For more information:
