LPW231.D15-R2

Article No. Length Weight Price
LPW231.D15-R2.510 510 mm 21.9
LPW231.D15-R2.550s 550 mm F 23.7
LPW231.D15-R2.250 250 mm 10.7
  • Description
  • Features
  • Attachments

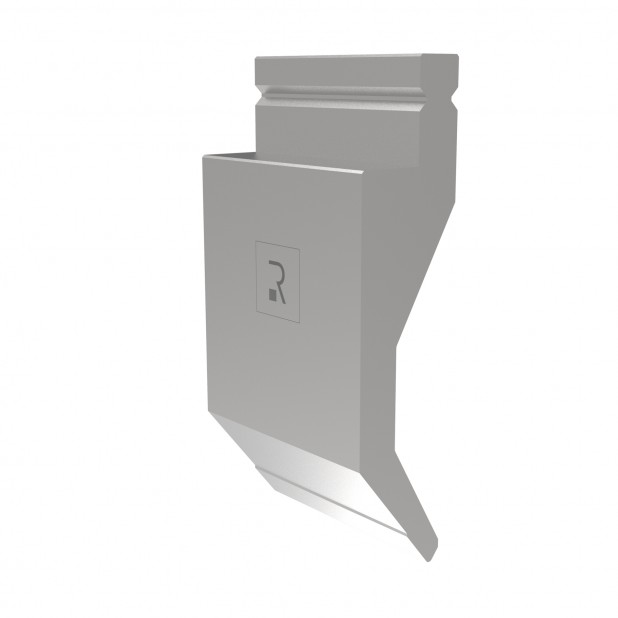

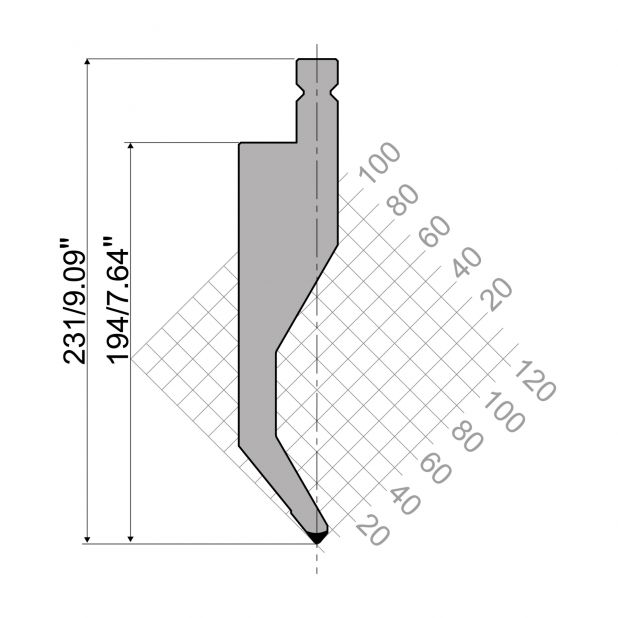

Punch R4 NEW W Series with Working height=194mm, α=78°, Radius=2mm, Material=42cr, Max. load=750kN/m.

W-TYPE

Horn 1
550 mm F

CLAMPING SYSTEMS

QUICKLOCK

Standard for tools with weight < 12.5 kg and for sectioned. According to the regulations in force in the individual countries regarding vertical weight lifting, the QL can be applied at an extra price.

  • Vertical tool change
  • Simplified manuality
  • Reduction of costs and tooling time

For more information:

SAFETY PINS

Standard for tools with weight > 12.5 kg.

  • Horizontal tool change

For more information:
