Rolla-V die XT Series in 42 Cr. Max.load 500 kN/m. Minimum angle 60°.
RVXT-1
| Article No. | Length | Weight | Model | Price | |
|---|---|---|---|---|---|

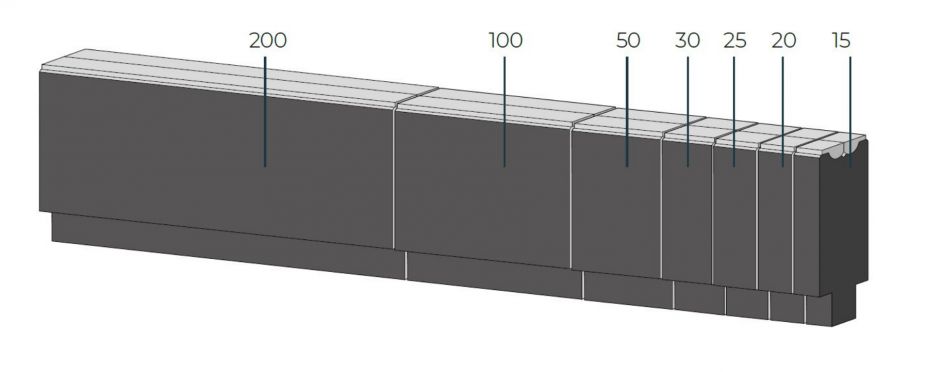

| RVXT-1.050 | 50 mm | 0.20 |
|
||
| RVXT-1.440s | 440 mm F | 1.90 |
|
||
| RVXT-1.100 | 100 mm | 0.40 |
|
||
| RVXT-1.200 | 200 mm | 0.90 |
|
||
| RVXT-1.500 | 500 mm | 2.10 |
|
||
| RVXT-1/SP | Spring |
|
|||
| RVXT-1/IN | Insert |
|
|||
| RVXT-1/DO | Dowel |
|
|||
| RVXT-1/U | U Clip |
|
- Description
- Features

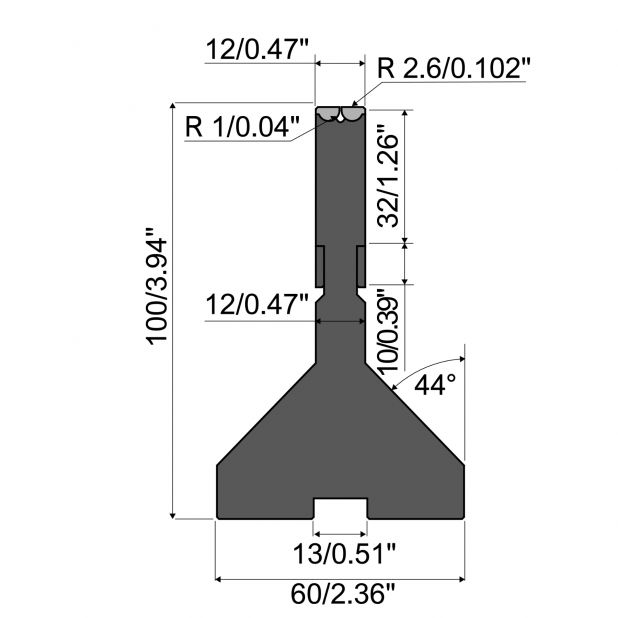

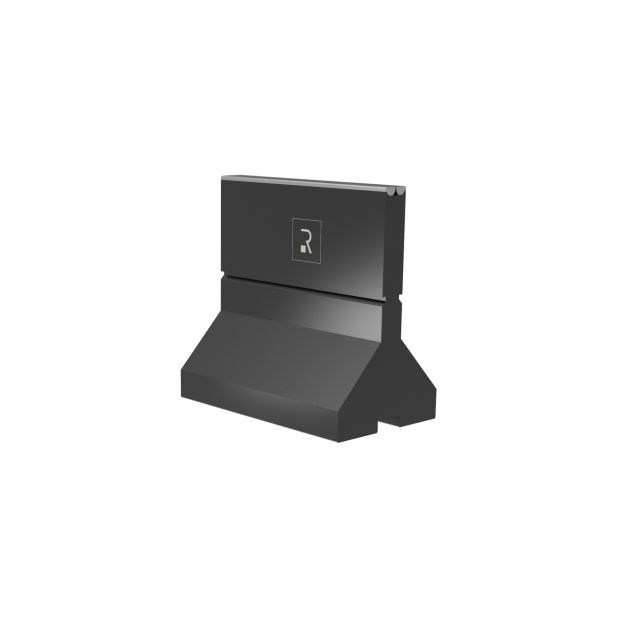

Rolla-V die XT series in 42 Cr. Max.load 500 kN/m. Minimum angle 60°.
The Rolla-V XT serie dies are ideal for:
- Making tight counter-bends thanks to the thinner stem;
- Bending sheet metal with deformations near the bending line;
- Bending much narrower edges than conventional dies;
- Excellent for bending crooked cut metal sheets without deforming any edges;
- Bending profiles with holes or button holesnear the bending line without deformation;
MIN. EDGE - Mild Steel
| mm | in | mm | in | |
| Punch Radius | R0.5 | R0.019 | R1.0 | R0.039 |
| Sheet Metal thickness 0.5 mm 0.019" | 2.7 | 0.10 | 2.9 | 0.11 |
| Sheet Metal thickness 0.8 mm 0.031" | 3.2 | 0.12 | 3.1 | 0.12 |
| Sheet Metal thickness 1.0 mm 0.039" | 3.5 | 0.14 | 3.6 | 0.14 |
NECESSARY STRENGTH - mild steel
| Punch Radius | R0.2 mm | R0.007 in | R1.0 mm | R0.039 in |
| Sheet Metal thickness 0.3 mm 0.01" | 40 kN/m | 50 kN/m | ||
| Sheet Metal thickness 0.5 mm 0.019" | 50 kN/m | 60 kN/m | ||
| Sheet Metal thickness 0.8 mm 0.031" | 100 kN/m | 130 kN/m | ||
| Sheet Metal thickness 1.0 mm 0.039" | 150 kN/m | 190 kN/m | ||
| Sheet Metal thickness 1.2 mm 0.04" | 240 kN/m | 300 kN/m | ||
| Sheet Metal thickness | R0.5 mm | R1.0 mm |
| With "V" | 5.7 mm | 5.7 mm |
| Max. Load kN/m | 500 | 500 |
| Min. Angle | 60° | 60° |
| Necessary Strength - Mild steel* | 50 | 180 |
| Necessary Strength - Stainless steel** | 75 | 260 |
| Min. Edge - Mild steel | 2.7 | 4.0 |
| Min. Edge - Stainless steel | 1.7 | 1.3 |
*Necessary Strenght - Mild steel max.450 N/mm2
**Necessary Strenght - Stainless steel max.700 N/mm2
ACCESSORIES
RVX1: GREASE
RVX1 grease is a lithium lubricant with particular properties. Thanks to its additives it bears the loads of compression. It protects the parts subjected to sliding. Very suitable for preserving the seat of the inserts or rotors and avoiding abrasion. The single pack contains 500 g of grease.
RVX-TAPE: PROTECTION
Fix the RVX-TAPE protections on the dies for those applications where the sheet metal must not show any signs. These are adhesive strips made with composite materials able to resist compression and to maintain a particularly compressible and anti-friction contact surface with the sheet.
RV-TO: ASSEMBLY TOOL
This tool is created to facilitate the release of the spring from its lower pin. Thanks to its shape, the tool allows you to start the operation in absolute safety and to replace worn parts very quickly.
