RVHD2.5
Adjustable "V" Rolla-v die in 42 Cr. Max.load 2500 kN/m. Minimum "V" 28 mm. Maximum "V" 69 mm.
RVHD2
| Article No. | Length | Weight | Content | Price | |
|---|---|---|---|---|---|
| RVHD2.500 | 500 mm | 67.5 |
|
||
| RVHD2.250 | 250 mm | 27.0 |
|
||
| RVHD2/SP | Spring |
|
|||
| RVHD2/IN | Insert |
|
|||
| RVHD2/DO | Dowel |
|
|||
| RVHD2/U | U Clip |
|
- Description
- Features

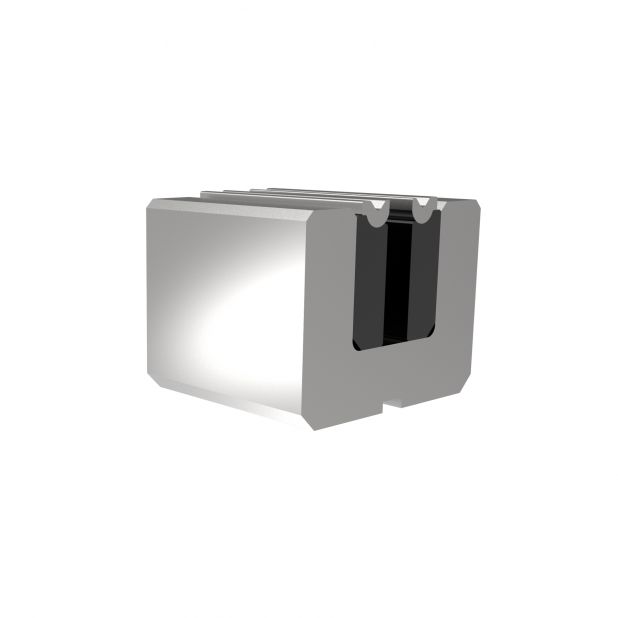

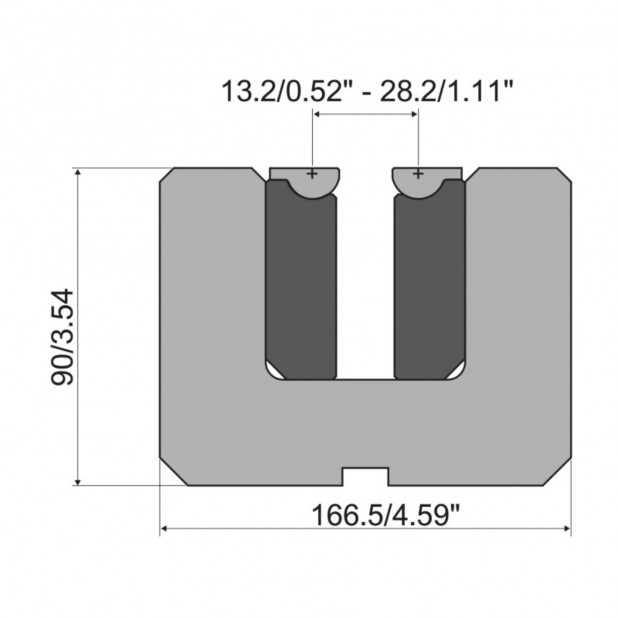

Adjustable "V" Rolla-v die in 42 Cr. Max.load 2000 kN/m. Minimum "V" 13.2 mm. Maximum "V" 28.2 mm.
ROLLA-V adjustable
All the advantages regarding the internal bend radius obtainable with Rolla-V matrices also apply to the variable V models which, as their name indicates, have an adjustable groove opening. Each model (HD, 2, 2.5, 3 and 4) has its own parameters and it Rolleri can provide special punches according to the radius to be made; unfortunately there's no universal variable size punch (yet).
HANDLES INCLUDED
In order to facilitate the movement of RVM, RVPV3 and RVHD series, it's possible to mount specific handles for manual lifting (where the weight permits) or mechanically operated through threaded holes. Thanks to this solution, positioning and removing the die from the press brake is an easy and safe operation.
| max. Load (kN/m) | 2000 | ||
| Min. Equivalent "v" size | Flat inserts | 14 mm | 0.551 in |
| Max. Equivalent "v" size | Flat inserts | 28 mm | 1.102 in |
| Max. material thickness | Flat inserts | 5 mm | 0.196 in |
| Min. external radius | concave inserts | 8 mm | 0.314 in |
| Max. external radius | concave inserts | 12 mm | 0.472 in |
| Max. material thickness | concave inserts | 2 mm | 0.078 in |
| Equivalent "V" | V inserts | 10 mm | 0.393 in |
| Min. width U-profile | V inserts | 18,5 mm | 0.728 in |
| Max. width U-profile | V inserts | 31,75 mm | 1.249 in |
| Outside bending radius min/max | V inserts | 2,5-4 mm | 0.098-0.157 in |
| Max. material thickness | V inserts | 1,5 mm | 0.059 in |
ACCESSORIES
RVX1: GREASE
RVX1 grease is a lithium lubricant with particular properties. Thanks to its additives it bears the loads of compression. It protects the parts subjected to sliding. Very suitable for preserving the seat of the inserts or rotors and avoiding abrasion. The single pack contains 500 g of grease.
RVX-TAPE: PROTECTION
Fix the RVX-TAPE protections on the dies for those applications where the sheet metal must not show any signs. These are adhesive strips made with composite materials able to resist compression and to maintain a particularly compressible and anti-friction contact surface with the sheet.
RV-TO: ASSEMBLY TOOL
This tool is created to facilitate the release of the spring from its lower pin. Thanks to its shape, the tool allows you to start the operation in absolute safety and to replace worn parts very quickly.
RVHD3
Adjustable "V" Rolla-v die in 42 Cr. Max.load 3500 kN/m. Minimum "V" 39 mm. Maximum "V" 118 mm.
RVHD4
Adjustable "V" Rolla-v die in 42 Cr. Max.load 4000 kN/m. Minimum "V" 70 mm. Maximum "V" 220 mm.
