RVHD2.5

Article No. Length Weight Model Price
RVHD2.5.500 500 mm 67.5
RVHD2.5.250 250 mm 27.0
RVHD2.5/SP Spring
RVHD2.5/IN Insert
RVHD2.5/DO Dowel
RVHD2.5/U U Clip
Adjustable "v" Rolla-v die in 42 Cr. max.load 2500 kN/m. min "V" 28 mm. Max "V" 69 mm.
  • Description
  • Features
  • Attachments

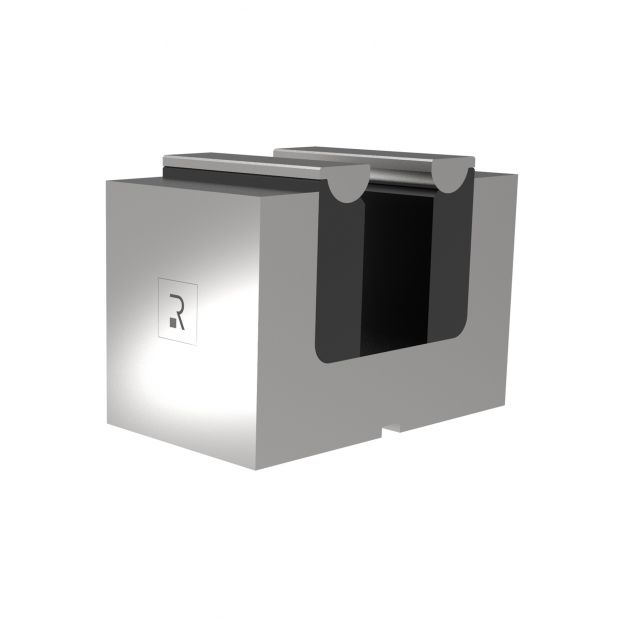

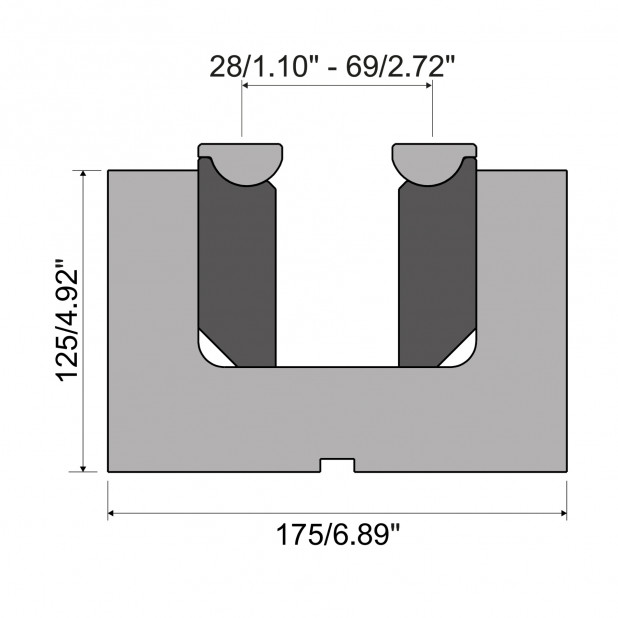

Adjustable "V" Rolla-v die in 42 Cr. Max.load 2500 kN/m. Minimum "V" 28 mm. Maximum "V" 69 mm.

ROLLA-V adjustable

All the advantages regarding the internal bend radius obtainable with Rolla-V matrices also apply to the variable V models which, as their name indicates, have an adjustable groove opening. Each model (HD, 2, 2.5, 3 and 4) has its own parameters and it Rolleri can provide special punches according to the radius to be made; unfortunately there's no universal variable size punch (yet).

HANDLES INCLUDED

In order to facilitate the movement of RVM, RVPV3 and RVHD series, it's possible to mount  specific handles for manual lifting (where the weight permits) or mechanically operated through threaded holes. Thanks to this solution, positioning and removing the die from the press brake is an easy and safe operation.

max. Load (kN/m)   2500
Min. Equivalent "v" size Flat inserts 25 mm 0.984 in
Max. Equivalent "v" size Flat inserts 65 mm 2.559 in
Max. material thickness Flat inserts 10 mm 0.393 in
Min. external radius concave inserts 15 mm 0.590 in
Max. external radius concave inserts 27 mm 1.062 in
Max. material thickness concave inserts 4 mm 0.157 in
Equivalent "V" V inserts 18 mm 0.708 in
Min. width U-profile V inserts 35 mm 1.377 in
Max. width U-profile V inserts 72 mm 2.834 in
Outside bending radius min/max V inserts 4-9 mm 0.157-0.354 in
Max. material thickness V inserts 2 mm 0.078 in

ACCESSORIES

RVX1: GREASE

RVX1 grease is a lithium lubricant with particular properties. Thanks to its additives it bears the loads of compression. It protects the parts subjected to sliding. Very suitable for preserving the seat of the inserts or rotors and avoiding abrasion. The single pack contains 500 g of grease.

Add to cart

RVX-TAPE: PROTECTION

Fix the RVX-TAPE protections on the dies for those applications where the sheet metal must not show any signs. These are adhesive strips made with composite materials able to resist compression and to maintain a particularly compressible and anti-friction contact surface with the sheet.

Add to cart

RV-TO: ASSEMBLY TOOL

This tool is created to facilitate the release of the spring from its lower pin. Thanks to its shape, the tool allows you to start the operation in absolute safety and to replace worn parts very quickly.

Add to cart

RVM70-3_12.7

Rolla-V die with 12.7mm milled groove. RVM series in 42 Cr. Max.load 2500 kN/m. Minimum angle 47°.

RVM70-3_60

Rolla-V die with 60 mm base. RVM series in 42 Cr. Max.load 2500 kN/m. Minimum angle 47°.

RVM90-4_12.7

Rolla-V die with milled groove 12.7 x 19 mm. RVM series in 42 Cr. Max.load 3000 kN/m. Minimum angle 73°.

RVM90-4_13

Rolla-V die with milled groove 13 x 20 mm. RVM series in 42 Cr. Max.load 3000 kN/m. Minimum angle 73°.

RVM90-4_60

Rolla-V die with 60 mm base. RVM series in 42 Cr. Max.load 3000 kN/m. Minimum angle 73°.

RVM90-4

Rolla-V die with milled groove 13 x 20 mm. RVM series in 42 Cr. Max.load 3000 kN/m. Minimum angle 73°.

RVHD2

Adjustable "V" Rolla-v die in 42 Cr. Max.load 2000 kN/m. Minimum "V" 13.2 mm. Maximum "V" 28.2 mm.

RVHD3

Adjustable "V" Rolla-v die in 42 Cr. Max.load 3500 kN/m. Minimum "V" 39 mm. Maximum "V" 118 mm.

RVHD4

Adjustable "V" Rolla-v die in 42 Cr. Max.load 4000 kN/m. Minimum "V" 70 mm. Maximum "V" 220 mm.
