T-UP EL T2000 | POWER LINE

Article No. Dimensions Product line Price
T-UP EL T2000 M2-M8 6 bushes from M2 to M8 Vertical head
T-UP EL T2000 M2-M8 UH 6 bushes from M2 to M8 Universal head
T-UP EL T2000 M3-M12 6 bushes from M3 to M12 Vertical head
T-UP EL T2000 M3-M12 UH 6 bushes from M3 to M12 Universal head
T-UP EL T2000 M3-M16 6 bushes from M3 to M16 Vertical head
T-UP EL T2000 M3-M16 UH 6 bushes from M3 to M16 Universal head
T-UP EL T2000 M5-M24 6 bushes from M5 to M24 Vertical head
T-UP EL T2000 M5-M24 UH 6 bushes from M5 to M24 Universal head
T-UP EL T2000 M6-M30 6 bushes from M6 to M30 Vertical head
T-UP EL T2000 M6-M30 UH 6 bushes from M6 to M30 Universal head
T-UP EL T2000 M8-M36 6 bushes from M8 to M36 Vertical head
T-UP EL T2000 M8-M36 UH 6 bushes from M8 to M36 Universal head
T-UP EL T2000 M10-M42 6 bushes from M10 to M42 Vertical head
T-UP EL T2000 M10-M42 UH 6 bushes from M10 to M42 Universal head
  • Description
  • Features
  • Attachments

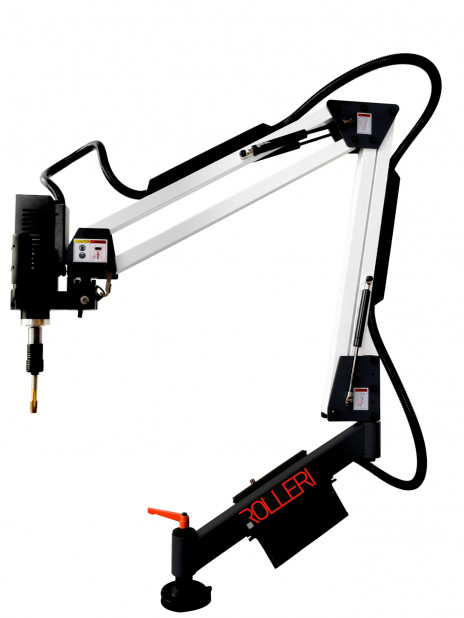

Electric threading machine, with "T" arm for working area = 2000mm, 6 bushes, vertical or universal head.

VERTICAL HEAD

Tapping direction Vertical
Head Vertical

The motor is mounted directly on the arm and it is possible to tap only vertically, from top to bottom.

UNIVERSAL HEAD

Tapping direction Vertical and horizontal
Head Universal

Universal heads UH60 (<M16) and UH80 (> M16) are mounted between the arm and the motor. This allows for greater flexibility for tapping both vertically and horizontally or at specific inclinations.

This universal head can also be purchased and applied at a later date.




INFORMATION

The special control system of this T-UP model allows the adjustment of depth, torque and speed.

WORK TIME

The pneumatic tappers of this series can work 3 hours without interruption.




T-UP EL T2000 M2-M8 | T-UP EL T2000 M2-M8 UH

Tapping capacity M2-M8 (1/16-5/16”)
Working area [mm] 2000
Spindle size [mm] Φ19
Power [Kw] 0.8
Speed [r.p.m] M2-M3 1600
Speed [r.p.m] M3-M5 1200
Speed [r.p.m] M5-M8 800



T-UP EL Z1100 M3-M12 | T-UP EL Z1100 M3-M12 UH

Tapping capacity M3-M12 (1/8-5/8”)
Working area [mm] 2000
Spindle size [mm] Φ19
Power [Kw] 0.8
Speed [r.p.m] M3-M5 800
Speed [r.p.m] M5-M10 500
Speed [r.p.m] M10-M12 400

T-UP EL T2000 M3-M16 | T-UP EL T2000 M3-M16 UH

Tapping capacity M3-M16 (1/8-5/8”)
Working area [mm] 2000
Spindle size [mm] Φ19
Power [Kw] 1.2
Speed [r.p.m] M3-M8 450
Speed [r.p.m] M8-M12 400
Speed [r.p.m] M12-M16 200

T-UP EL T2000 M5-M24 | T-UP EL T2000 M5-M24 UH

Tapping capacity M5-M24 (3/19-15/16”)
Working area [mm] 2000
Spindle size [mm] Φ31
Power [Kw] 2
Speed [r.p.m] M3-M8 300
Speed [r.p.m] M8-M12 250
Speed [r.p.m] M12-M16 100

T-UP EL T2000 M6-M30 | T-UP EL T2000 M6-M30 UH

Tapping capacity M6-M30 (1/4 - 1-1/4”)
Working area [mm] 2000
Spindle size [mm] Φ31
Power [Kw] 2
Speed [r.p.m] M3-M8 250
Speed [r.p.m] M8-M12 200
Speed [r.p.m] M12-M16 100

T-UP EL T2000 M8-M36 | T-UP EL T2000 M8-M36 UH

Tapping capacity M8-M36 (5/16 - 1-3/8”)
Working area [mm] 2000
Spindle size [mm] Φ31
Power [Kw] 2
Speed [r.p.m] M3-M8 120
Speed [r.p.m] M8-M12 100
Speed [r.p.m] M12-M16 60

T-UP EL T2000 M10-M42 | T-UP EL T2000 M10-M42 UH

Tapping capacity M10-M34 (3/8 - 1-4/16”)
Working area [mm] 2000
Spindle size [mm] Φ45
Power [Kw] 2
Speed [r.p.m] M3-M8 70
Speed [r.p.m] M8-M12 50
Speed [r.p.m] M12-M16 30

T-UP EL T2500 | POWER LINE

Electric threading machine, with "T" arm L = 2500, 6 bushes from M5 to M24, vertical or universal head. Power 1,2 Kw.
