T-UP EL L1100 | POWER LINE

Article No. Dimensions Product line Price
T-UP Power EL L1100 M16 UN TS 6 bushes from M3 to M16 Universal head
  • Description
  • Features
  • Attachments

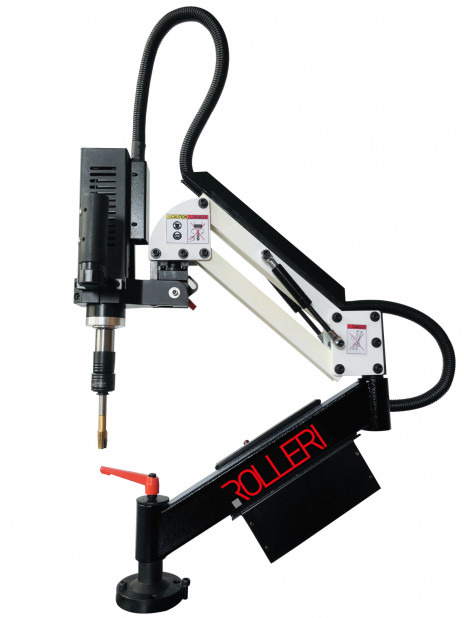

Electric threading machine, with "L" arm for working area = 1100mm, 6 bushes, vertical or universal head.

UNIVERSAL HEAD

Tapping direction Vertical and horizontal
Head Universal

Universal heads UH60 (<M16) and UH80 (> M16) are mounted between the arm and the motor. This allows for greater flexibility for tapping both vertically and horizontally or at specific inclinations.

This universal head can also be purchased and applied at a later date.



INFORMATION

The special control system of this T-UP model allows the adjustment of the tapping speed. In addition, the robust front arm construction increases stability ensuring high precision machining.

WORK TIME

The pneumatic tappers of this series can work 3 hours without interruption.



T-UP EL Z1100 M2-M8 | T-UP EL Z1100 M2-M8 UH

Tapping capacity M2-M8 (1/16-5/16”)
Working area [mm] 1100
Spindle size [mm] Φ19
Power [Kw] 0.8
Speed [r.p.m] M2-M3 1600
Speed [r.p.m] M3-M5 1200
Speed [r.p.m] M5-M8 800

T-UP EL Z1100 M3-M12 | T-UP EL Z1100 M3-M12 UH

Tapping capacity M3-M12 (1/8-1/2”)
Working area [mm] 1100
Spindle size [mm] Φ19
Power [Kw] 0.8
Speed [r.p.m] M3-M5 800
Speed [r.p.m] M5-M10 500
Speed [r.p.m] M10-M12 400

T-UP EL Z1100 M3-M16 | T-UP EL Z1100 M3-M16 UH

Tapping capacity M3-M16 (1/8-5/8”)
Working area [mm] 1100
Spindle size [mm] Φ19
Power [Kw] 0.8
Speed [r.p.m] M3-M5 450
Speed [r.p.m] M5-M10 400
Speed [r.p.m] M10-M12 200
