LM90.50.78TOOLS > PRESS BRAKES > Tools > Type R4: Dies > LM90.80.78BLM130.06.78

LM90.80.78

Article No. Length Weight Price
LM90.80.78.508 508 mm 25.50
  • Description
  • Features
  • Attachments

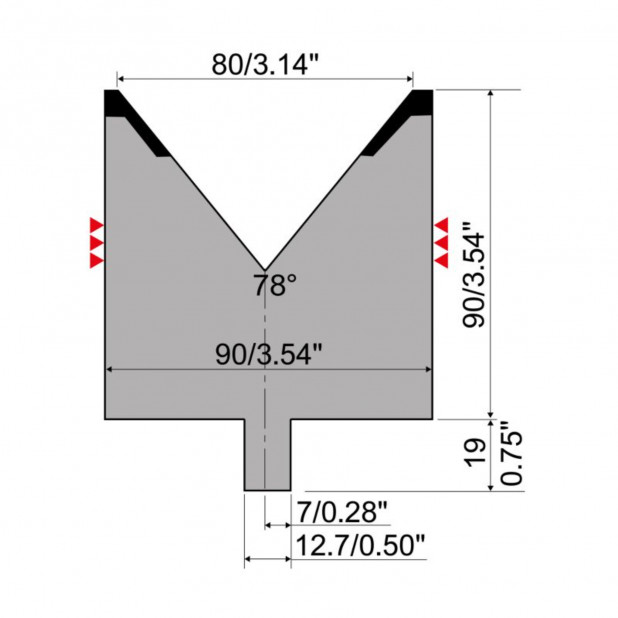

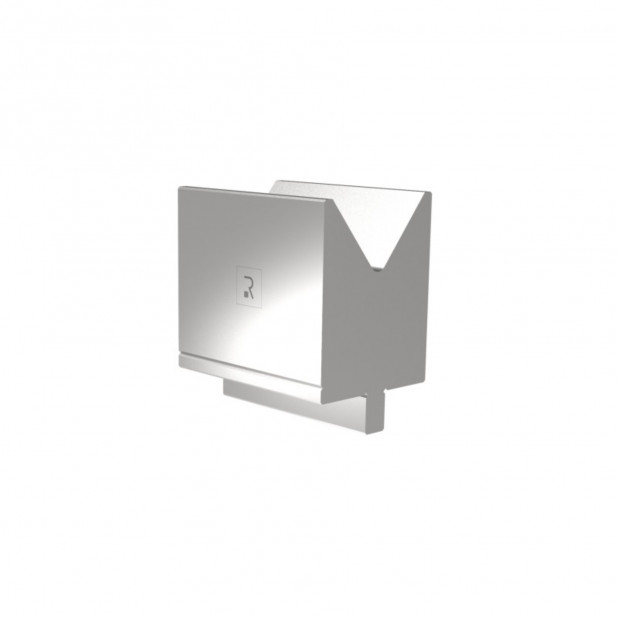

Die R4 type with Working height=90mm, α=78°, Radius=5mm, Material=42Cr, Max. load=1500kN/m.

550 mm F
550 mm FB

LM model with ground stem
