RVM2.5_13

Article No. Length Weight Model Price
RVM2.5.500.13 500 23.5
RVM2.5.470s.13 470 mm F 22.4
RVM2.5/SP.13 Spring
RVM2.5/IN.13 Insert
RVM2.5/DO.13 Dowel
RVM2.5/U.13 U clip

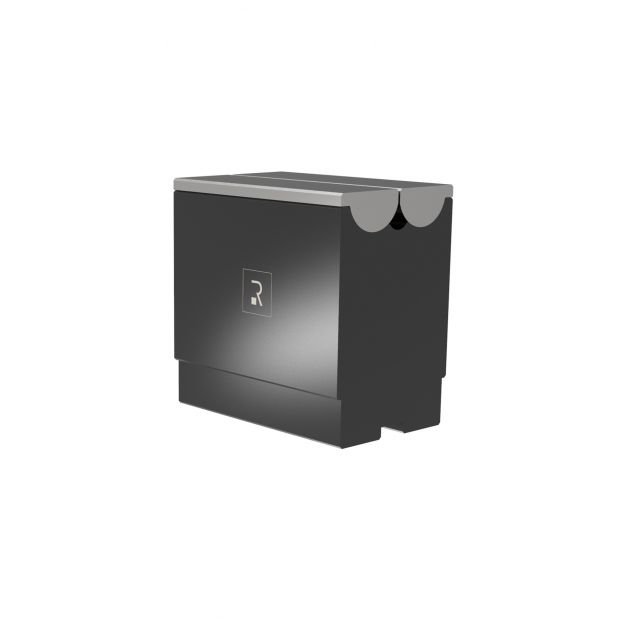

Rolla-V die with milled groove 13 x 20 mm. RVM series in 42 Cr. max.load 2000 kN/m. min. angle 46°
Rolla-V die with milled groove 13 x 20 mm. RVM series in 42 Cr. max.load 2000 kN/m. min. angle 46°
  • Description
  • Features
  • Attachments

Rolla-V die with milled groove 13 x 20 mm. RVM series in 42 Cr. Max.load 2000 kN/m. Minimum angle 46°.

The Rolla V dies are distinguished from the traditional ones by the presence of 2 oscillating rotors which support the sheet metal before the bending process. Their peculiarity consists in the rotation of the rotors that accompanies the sheet metal during the bending with a drastic reduction of the friction resistance and of the length of the minimum edge. This type of tool applies the concept of tangential bending whereby the behavior of the sheet is different: this is more noticeable if holes and slots are present near the bending areas. Thanks to this concept, these areas do not undergo the classic deformations more commonly known as "slurries".

  • Sheet metal supported during bending process
  • Minimum movement of the sheet metal on the inserts reduces bending marks
  • Internal bending radius is the same of the punch tip radius

HANDLES INCLUDED

In order to facilitate the movement of RVM, RVPV3 and RVHD series, it's possible to mount  specific handles for manual lifting (where the weight permits) or mechanically operated through threaded holes. Thanks to this solution, positioning and removing the die from the press brake is an easy and safe operation.

Sheet metal thickness 2,0 mm/0,078 in 4,0 mm/0,157 in 6,0 mm/0,236 in
with "V" 28 mm/1,102 in 28 mm/1,102 in 28 mm/1,102 in
Max. Load kN/m 2500 2500 2500
Min. Angle 46° 46° 55°
Necessary Strength - Mild steel* 100 470 1270
Necessary Strength - Stainless steel** 150 730 1960
Min. External edge  18.6 mm/0,732 in 18.6 mm/0,732 in 18.6 mm/0,732 in
Max. external radius 13.2 mm/0,519 in 12.0 mm/0,472 in 9.8 mm/0,385 in

 *Necessary Strenght - Mild steel max.450 N/mm2

**Necessary Strenght - Stainless steel max.700 N/mm2

ACCESSORIES

RVX1: GREASE

RVX1 grease is a lithium lubricant with particular properties. Thanks to its additives it bears the loads of compression. It protects the parts subjected to sliding. Very suitable for preserving the seat of the inserts or rotors and avoiding abrasion. The single pack contains 500 g of grease.
