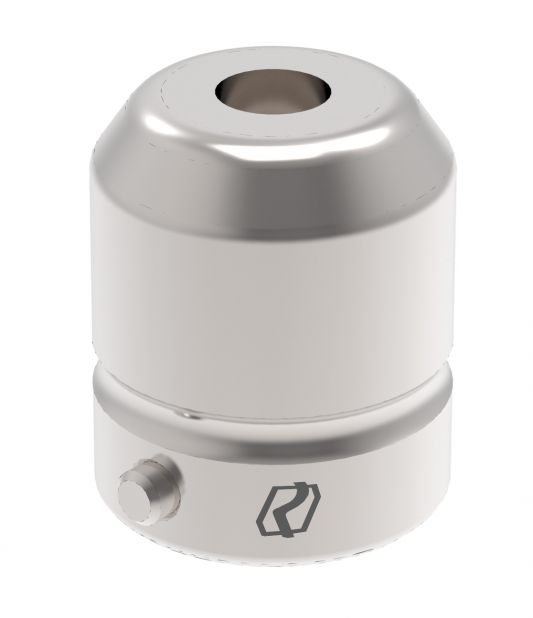

Die, WT-Style MTX8IR

EXTREME LINE

Included RLP-HPL coating or RLP - Zinc Free coating of your choice.

In order to help you choose the right tool for your application, Rolleri offers this guide:

• Hit rate application: Extreme (>380 H.P.M.)
• Machine type: Servo Electric/High Speed Hydraulic
• Material type-Toughness: Hard (Tensile Strength > 45 kg/mm²)
• Material thickness: Thick (> 3 mm)
• Punching operation: Nibbling
• Amount of Hits for the Job: Big (>10000 hits)

SUPREME LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

• Hit rate application: High (200~380 H.P.M.)
• Machine type: Hydraulic
• Material type-Toughness: Medium (Tensile Strength 22~45 kg/mm²)
• Material thickness: Medium (1.5~3mm)
• Punching operation: Partial Hit (>50% of punch surface)
• Amount of Hits for the Job: Medium (5000~10000 hits)

POWER LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

• Hit rate application: Normal (<200 H.P.M.)
• Machine type: Mechanic
• Material type-Toughness: Easy (Tensile Strength 7~25 kg/mm²)
• Material thickness: Thin (<1,5 mm)
• Punching operation: Full Hit
• Amount of Hits for the Job: Small (<5000 hits)

All our Thick Turret dies are standard antislug.

Constricting taper on cutting position. Best shape for slug pulling.

Applications: for shaped and special shapes

STANDARD SHAPES AND KEY LOCATIONS

Key locations will be based on the table below unless otherwise instructed. (Die view from the top of a die).

If you need keys with different positions or in the case of special slices, let us know the key positioning required.

STRAIGHT EDGE WITH STRAIGHT RELIEF

Both edge part and relief part are straight.

Applications: for round shape

ALL TAPER

All tapered

STRAIGHT EDGE WITH TAPER RELIEF

Cutting edge is straight, Relief part is tapered.

Applications: for blanking, heel tool, dies with less than 0.1 mm clearance for shaped
