Die, MT-Style MT16MM

DIE CLEARANCE CALCULATOR


Article No. Shape Quality Dimensions Weight Price
6UDR1S Supreme Line mm Ø 0.07
6UDS1S

Supreme Line mm 0.07
  • Description
  • Features
  • Attachments

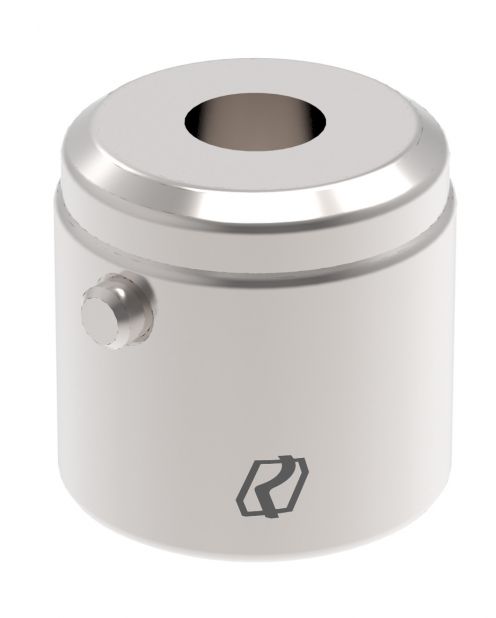

Die for multitool, MT style MT16MM. Compatible multitool: MATE MT 8-16, MT 10-16

All our Thick Turret dies are standard antislug.

Constricting taper on cutting position. Best shape for slug pulling.

Applications: for shaped and special shapes

STANDARD SHAPES AND KEY LOCATIONS

Key locations will be based on the table below unless otherwise instructed. (Die view from the top of a die).

If you need keys with different positions or in the case of special slices, let us know the key positioning required.

ON REQUEST

STRAIGHT EDGE WITH STRAIGHT RELIEF

Both edge part and relief part are straight.

Applications: for round shape

ALL TAPER

All tapered

STRAIGHT EDGE WITH TAPER RELIEF

Cutting edge is straight, Relief part is tapered.

Applications: for blanking, heel tool, dies with less than 0.1 mm clearance for shaped
