Die, MT-Style XMTE4

DIE CLEARANCE CALCULATOR


Article No. Shape Quality Dimensions Weight Price
64DRXB Power Line mm Ø 0.25
64DSXS

Supreme Line mm 0.25
64DRXB Power Line mm Ø 0.25
64DSXB

Power Line mm 0.25
64DRXT Extreme Line mm Ø 0.25
64DSXT

Extreme Line mm 0.25
  • Description
  • Features
  • Attachments

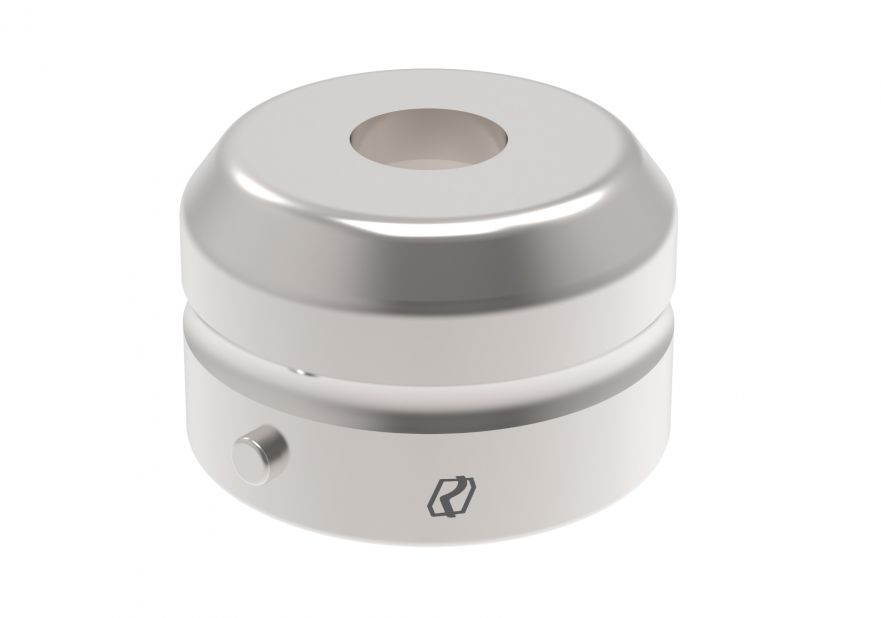

Die for multitool, MT style XMTE4. Compatible multitool: Mate XMTE4

EXTREME LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

  • Hit rate application: Extreme (>380 H.P.M.)
  • Machine type: Servo Electric/High Speed Hydraulic
  • Material type-Toughness: Hard (Tensile Strength > 45 kg/mm²)
  • Material thickness: Thick (> 3 mm)
  • Punching operation: Nibbling
  • Amount of Hits for the Job: Big (>10000 hits)

SUPREME LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

  • Hit rate application: High (200~380 H.P.M.)
  • Machine type: Hydraulic
  • Material type-Toughness: Medium (Tensile Strength 22~45 kg/mm²)
  • Material thickness: Medium (1.5~3mm)
  • Punching operation: Partial Hit (>50% of punch surface)
  • Amount of Hits for the Job: Medium (5000~10000 hits)

POWER LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

  • Hit rate application: Normal (<200 H.P.M.)
  • Machine type: Mechanic
  • Material type-Toughness: Easy (Tensile Strength 7~25 kg/mm²)
  • Material thickness: Thin (<1,5 mm)
  • Punching operation: Full Hit
  • Amount of Hits for the Job: Small (<5000 hits)

All our Thick Turret dies are standard antislug.

Constricting taper on cutting position. Best shape for slug pulling.

Applications: for shaped and special shapes

STANDARD SHAPES AND KEY LOCATIONS

Key locations will be based on the table below unless otherwise instructed. (Die view from the top of a die).

If you need keys with different positions or in the case of special slices, let us know the key positioning required.

ON REQUEST

STRAIGHT EDGE WITH STRAIGHT RELIEF

Both edge part and relief part are straight.

Applications: for round shape

ALL TAPER

All tapered

STRAIGHT EDGE WITH TAPER RELIEF

Cutting edge is straight, Relief part is tapered.

Applications: for blanking, heel tool, dies with less than 0.1 mm clearance for shaped

EXTRA CHARGE FOR DIE CLEARANCE < 0,1 mm

If die clearance is less than 0.1 mm, consider a + 25% extra charge.

EXTRA CHARGE FOR MINIMUM SIZE < 2,0 MM

If die shape has a minimum size of less than 2.0 mm, consider a extra charge of + 25%.
