Punch, WT-Style MT8RI
Punch new design with keyslot, WT style MT8RI. Compatible multitool: Wilson Tool MT 8 stations for Nisshinbo (new design), MT8i, MT8Ri Matrix 8/16 R M…

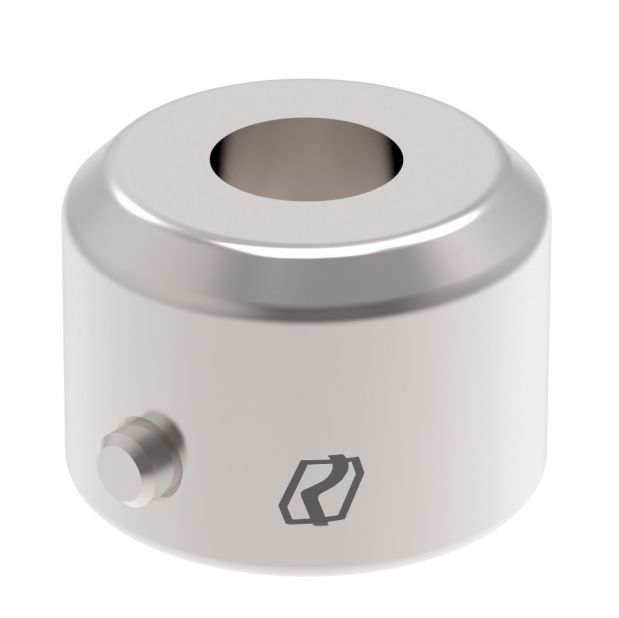

Die, WT-Style MT8RI
DIE CLEARANCE CALCULATOR
| Article No. | Shape | Quality | Dimensions | Weight | Price | |
|---|---|---|---|---|---|---|
| 68DRRT |
 |
Extreme Line | mm Ø | 0.07 |
|
|
| 68DSRT |
 |
Extreme Line | mm | 0.07 |
|
- Description
- Features
Die for multitool, WT style MT8RI. Compatible multitool: Wilson Tool MT 8 stations (old design) Wilson Tool MT 8 stations (new design), MT8Ri
All our Thick Turret dies are standard antislug.
Constricting taper on cutting position. Best shape for slug pulling.
Applications: for shaped and special shapes
.jpg)
STANDARD SHAPES AND KEY LOCATIONS
Key locations will be based on the table below unless otherwise instructed. (Die view from the top of a die).
If you need keys with different positions or in the case of special slices, let us know the key positioning required.
.jpg)
ON REQUEST
STRAIGHT EDGE WITH STRAIGHT RELIEF
Both edge part and relief part are straight.
Applications: for round shape
ALL TAPER
All tapered
STRAIGHT EDGE WITH TAPER RELIEF
Cutting edge is straight, Relief part is tapered.
Applications: for blanking, heel tool, dies with less than 0.1 mm clearance for shaped
EXTRA CHARGE FOR DIE CLEARANCE < 0,1 mm
If die clearance is less than 0.1 mm, consider a + 25% extra charge.
EXTRA CHARGE FOR MINIMUM SIZE < 2,0 MM
If die shape has a minimum size of less than 2.0 mm, consider a extra charge of + 25%.
Stripper, WT-Style MT8RI
Stripper for multitool, WT style MT8RI. Compatible multitool: Wilson Tool MT 8 stations (old design), Wilson tool MT 8 stations (new design), MT8Ri
Die shims, WT-Style MT8RI
Die shims packages for multitool, WT style MT8RI. Compatible multitool: Wilson Tool MT 8 stations (old design), Wilson Tool MT 8 stations (new design)…
Lubricated punch, WT-Style MT8RI
Lubricated punch old style with pin for multitool, WT style MT8RI. Compatible multitool: Wilson Tool MT 8 stations for Nisshinbo (old design)
