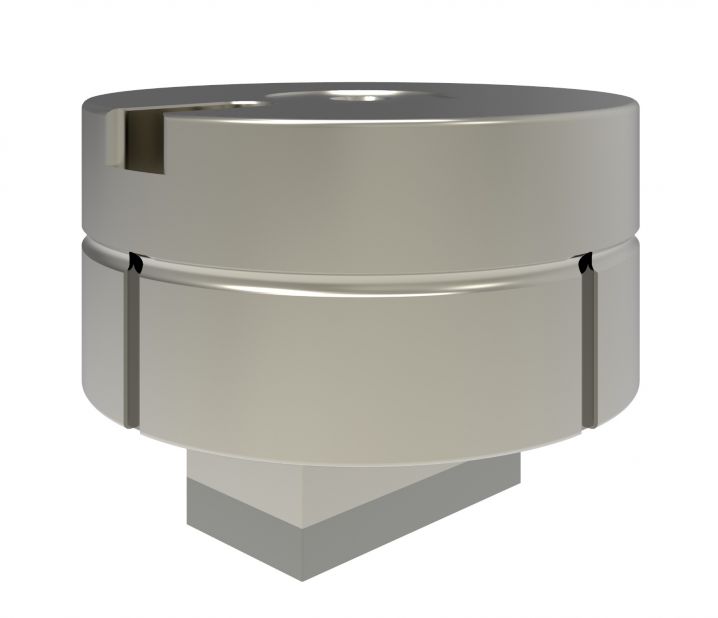

Punch, Metric-Style Lubricated, E

EXTREME LINE

Punch with "Super Dry Punch" treatment. Available on round, square, Rectangle and Obround punches

• Hit rate application: Extreme (>380 H.P.M.)
• Machine type: Servo Electric /High Speed Hydraulic
• Material type - Toughness: HARD (Tensile Strength>45 kg/mm²)
• Material Thickness: Thick (>3mm)
• Punching operation: Nibbling
• Amount of hits for the Job: High (>10000)

SUPREME LINE

• Hit rate application: High (200 - 380 H.P.M.)
• Machine type: Hydraulic
• Material type - Toughness:  Medium (Tensile Strength 22 - 45 kg/mm²)
• Material Thickness: Medium (1.5 - 3mm)
• Punching operation: Partial Hit (>50% of punch surface)
• Amount of hits for the Job: Medium (5000 - 10000)

POWER LINE

• Hit rate application: Normal (<200 H.P.M.)
• Machine type: Mechanic
• Material type - Toughness:  Easy (Tensile Strength <7-25 kg/mm²)
• Material Thickness: Thin (<1.5mm)
• Punching operation: Full Hit
• Amount of hits for the Job: Low (<5000)

STANDARD SHAPES AND KEY POSITIONING

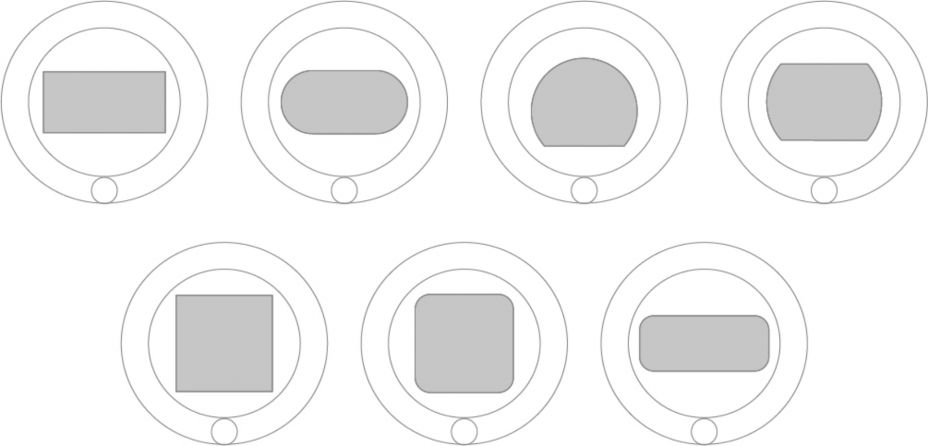

The positioning of the key will be based on the following table, unless otherwise requested. (Drawings of tools seen from above). In case of need of keys with different positions or in case of special operations, please communicate the key positioning required.

RLP-HPL COATING

Rolleri RLP-HPL technology was designed to give a universal answer to the more traditional processes giving the tools a constant efficiency and performance at the highest levels. The particular characteristics of this layer are the extraordinary tenacity (thanks to the introduction of the Carbon within the layer) and the ability to express itself at its best in different applications, and specifically on highly resistant materials, like Stainless Steel.
RLP-HPL coating achieves the highest levels of adherence, making even more cohesive the combination tool + coating. The highly compact layer of RLP-HPL is able to express in its 3 microns thickness high hardness values that represent a solid barrier against wear ensuring extraordinary performance.
Furthermore, its structure “multilayer” is composed of several hundreds of different layers that give better control of structural stress

RLP Coating - Zinc Free

Double coating Rolleri RLP-Zinc Free merges the already extraordinary performance of RLP-HPL, with self-lubricating and anti-adhesive layer based on MoS2 (Molybdenum Disulphide). Developed in aerospace from the need to find an alternative to traditional lubricants, revealed excellent properties that have made him, as a result, very interesting for a variety of application fields.
This is a coating with a very low coefficient of friction, and it's able to release traces of wear lubricants (that is no abrasive particles are created by the wear of the coating). When working on particularly rough surfaces, Rolleri RLP-Zinc Free gradually becomes smoother during use. Due to these properties this treatment is particularly indicated not only to work with high resistance materials, but also for processing on galvanized sheet, aluminum or copper, because it is able to prevent "galling" process. RLP-Zinc Free can be easily re-coated

EXTRA BACK TAPER ON THE SIDE OF THE PUNCH

This specification makes better performance for less touching area and less sticking material on the side face of punch body

• Without extra charge for round punches
• +20% extra charge for other shapes

ROOF TOP SHEAR

To reduce tonnage and noise by added angle 2°(or 5°) at punch shear.

Add to cart

INVERTED ROOFTOP SHEAR

To prevent touch of punch and die when use as shearing punch tool.

Add to cart

FOUR WAY SHEAR

Best shear to be used on square punch for corner notching applications. Thanks to its geometry this shear keeps centralized the punching stress and avoid side thrust.

Add to cart

DOUBLE VALLEY SHEAR

To prevent touch of punch and die when use as shearing punch tool. (Double valley shear is used on long shearing punching tools (ex: 80x5 or 110x5).

Add to cart
