Guide, Metric-Style, B

Article No.	Shape	Quality	Dimensions	Weight
1BGRAT		Extreme Line	mm Ø	0.9
1BGRAS		Supreme Line	mm Ø	0.9
1BGRAB		Power Line	mm Ø	0.9
1BGHAT	E = Dimensions: Lenght, Height (mm) O = Dimensions: Lenght, Height (mm) Q = Dimensions: Lenght (mm) D = Dimensions: Diameter, Lenght (mm) 2 = Dimensions: Diameter, Lenght (mm) V = Dimensions: Radius, Lenght (mm) W = Dimensions: Radius, Lenght, Height (mm)	Extreme Line	mm	0.9
1BGHAS	E = Dimensions: Lenght, Height (mm) O = Dimensions: Lenght, Height (mm) Q = Dimensions: Lenght (mm) D = Dimensions: Diameter, Lenght (mm) 2 = Dimensions: Diameter, Lenght (mm) V = Dimensions: Radius, Lenght (mm) W = Dimensions: Radius, Lenght, Height (mm)	Supreme Line	mm	0.9
1BGHAB	E = Dimensions: Lenght, Height (mm) O = Dimensions: Lenght, Height (mm) Q = Dimensions: Lenght (mm) D = Dimensions: Diameter, Lenght (mm) 2 = Dimensions: Diameter, Lenght (mm) V = Dimensions: Radius, Lenght (mm) W = Dimensions: Radius, Lenght, Height (mm)	Power Line	mm	0.9

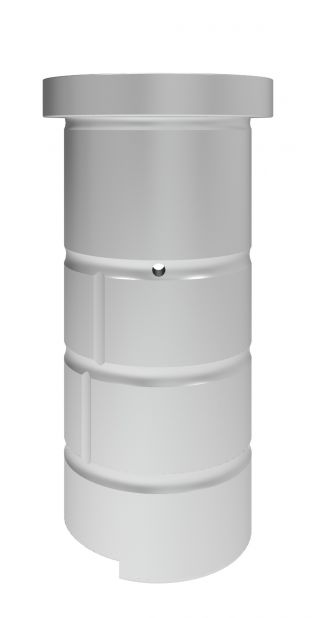

Guide, Metric-Style, B Station

Availability	on stock 48 h
Type	R1
Series	B Station
Family	Metric-Style
Product type	Guide
Maximum tool ø	31.75
Note	Available with close or open guide with interchangeable stripper

EXTREME LINE

Easy punch length adjustment

Closed guide

SUPREME LINE

Punch length adjustment

Open guide with interchangeable stripper

POWER LINE

Punch length not adjustable

Closed guide

Open guide with interchangeable stripper available
