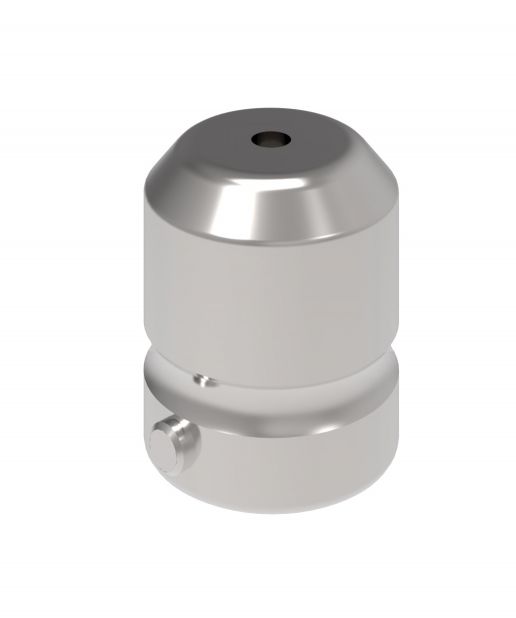

Antislug Dies, A

EXTREME LINE

• Hit rate application: Extreme (>380 H.P.M.)
• Machine type: Servo Electric /High Speed Hydraulic
• Material type - Toughness: HARD (Tensile Strength>45 kg/mm²)
• Material Thickness: Thick (>3mm)
• Punching operation: Nibbling
• Amount of hits for the Job: High (>10000)

SUPREME LINE

• Hit rate application: High (200 - 380 H.P.M.)
• Machine type: Hydraulic
• Material type - Toughness:  Medium (Tensile Strength 22 - 45 kg/mm²)
• Material Thickness: Medium (1.5 - 3mm)
• Punching operation: Partial Hit (>50% of punch surface)
• Amount of hits for the Job: Medium (5000 - 10000)

POWER LINE

• Hit rate application: Normal (<200 H.P.M.)
• Machine type: Mechanic
• Material type - Toughness:  Easy (Tensile Strength <7-25 kg/mm²)
• Material Thickness: Thin (<1.5mm)
• Punching operation: Full Hit
• Amount of hits for the Job: Low (<5000)

All of our high turret dies have the antislug feature as standard

Inclination at the cutting point which forces the slug downwards.

Applications: for round and shapes

STANDARD SHAPES AND KEY POSITIONING

The positioning of the key will be based on the following table, unless otherwise requested. (Drawings of tools seen from above). In case of need of keys with different positions or in case of special operations, please communicate the key positioning required.

Straight edge with straight relief

Both edge part and relief part are straight.

All taper

All Tapered

Slug catcher

Constricting taper on cutting position. Best shape for slug pulling.

EXTRA CHARGE FOR DIE CLEARANCE < 0.1 mm

If the die clearance is < 0.1 mm, please consider +25% extra charge.

EXTRA CHARGE FOR DIES WITH DIMENSION < 2.0 mm

If the die has a minumum dimension < 2.0 mm, please consider +25% extra charge.
