GASP30.60.16 TOOLS > PRESS BRAKES > Tools > Type R9 > GASP30.60.20 GASP30.60.32

GASP30.60.20

Article No.	Length	Weight
GASP30.60.20.525	525 mm	5.00

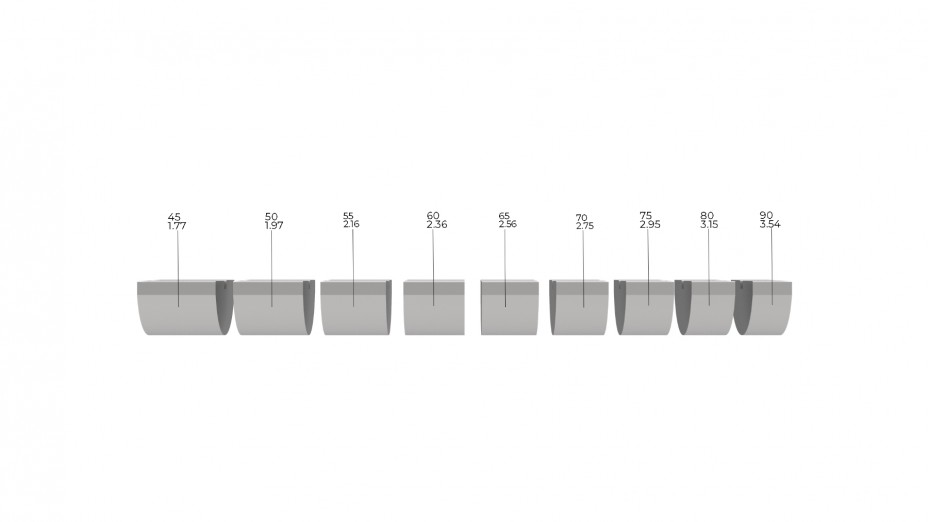

GASP30.60.20.590s	590 mm FX	5.60

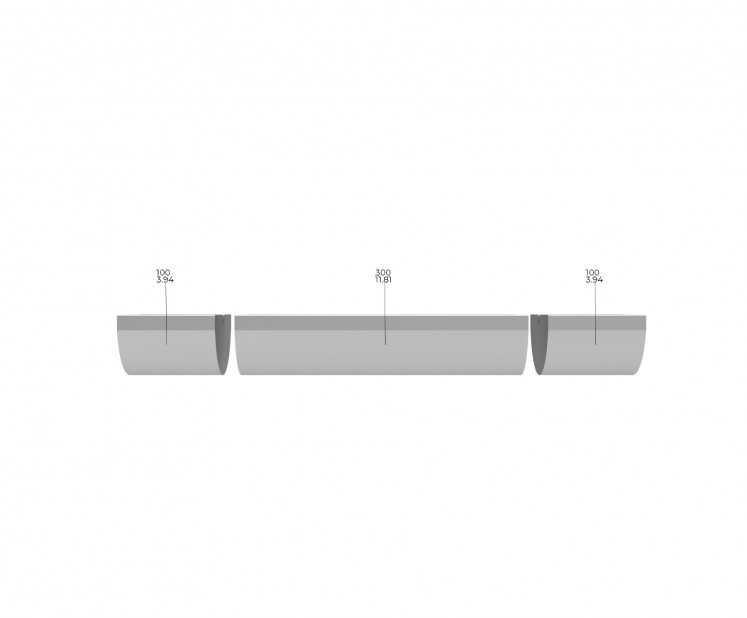

GASP30.60.20.500s	500 mm F	4.30

Description
Features
Attachments

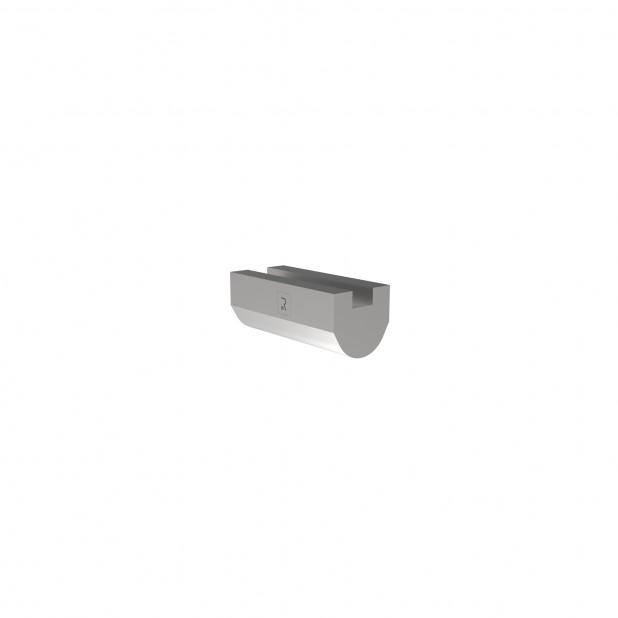

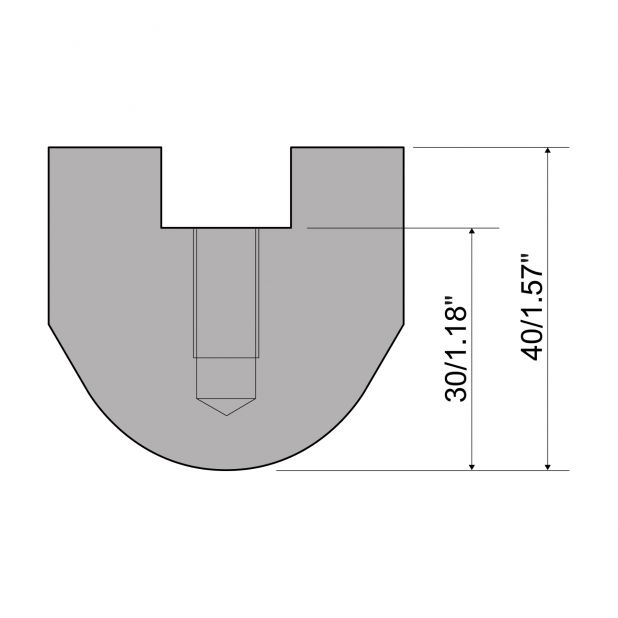

Radius element RX type Gasparini with height=40mm, α=60°, Radius=20mm, Material=c45, Max. load=1000kN/m. To use with GASP293-16, GASP170-16

Availability	on request
Type	RX
Product type	Radius tool
Tonnage	1000 kN/m max.
Material	C45: 560-710 N/mm²
Height	40
Degrees	60
Radius	20
To use with	GASP293-16, GASP170-16

MSA - magnet

Extremely versatile and flexible magnetic bracket

GASP293-16

Radius punch holder RX Gasparini type with height=293mm, Material=c45, Max. load=1000kN/m. To use with GASP40.60.03, GASP35.60.08, GASP30.60.11.5, GA…

GASP170-16

Radius punch holder RX Gasparini type with height=170mm, Material=c45, Max. load=1000kN/m. To use with GASP40.60.03, GASP35.60.08, GASP30.60.11.5, GA…
