WKS013 Set S

Article No. Price
WKS013 Set S
  • Description
  • Features
  • Attachments

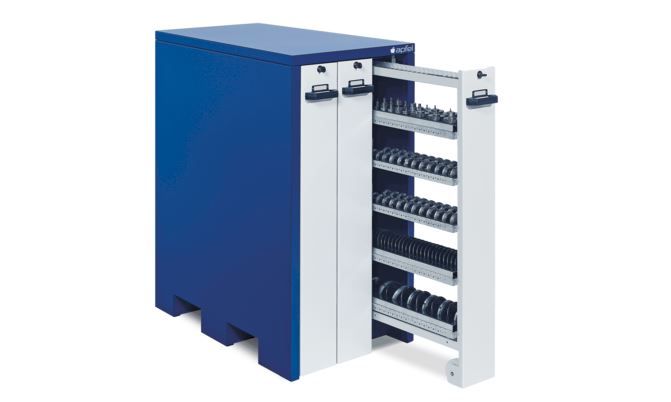

Cabinet for type R2 tools with 3 vertical drawers of 180 mm wide. Max.Load per drawer 900 kg

EQUIPMENT

The cabinet is equipped with 3 extractable drawers. Maximum capacity:

Punches size 1 or 2 with or without alignment
ring
240
Dies size 1 160
Dies size 2 or die adapters 30
Strippers 120
Special and forming tools 4
Setup cartridges equipped or unequipped 5

DRAWERS

The structure of drawers come with holes with spacing of 25 mm. That allows a great range of customization of the position of the shelves

LOAD

The cabinet max. Load is 900 kg/drawer

Structure thickness 3.0 mm

ACCESSIBILITY

Each drawer open and close by a handle with an independent lock

HANDLING

Thanks to its structure, the cabinet can be safely moved with transpallets or forklifts.

Each drawer has high resistance wheels for a very precise open/close movement.

COLOUR

Powder coated in blue gentian RAL 5010 (body) and white RAL 9002 (Drawer). Possibility of customization with different colours

WKS001 Set S

Cabinet for type R2 tools with 5 vertical drawers of 180 mm wide. Max.Load per drawer 900 kg

WKS001 Set S Plus

Cabinet for type R2 tools with 5 vertical drawers of 180 mm wide. Max.Load per drawer 900 kg

WKS002 Set S

Cabinet for type R2 tools with 5 vertical drawers of 180 mm wide. Max.Load per drawer 900 kg

WKS015 Set S

Cabinet for type R2 tools with 5 vertical drawers of 180 mm wide. Max.Load per drawer 900 kg

WSW581

Tools Trolley, max.Load 400 kg. Equipped with shelves with partition plates, 1 drawer and 1 non slip mat.
