BMR55.12.88Products > BENDING SOLUTIONS > Tools > Type R2/R3: Dies > BMR55.16.88BMR55.20.88

BMR55.16.88

Article No. Length Weight Price
BMR55.16.88.1000 1000 mm 14.50
BMR55.16.88.500 500 mm 7.20
BMR55.16.88.1100s 1100 mm F 16.00
BMR55.16.88.550s 550 mm FW 7.9

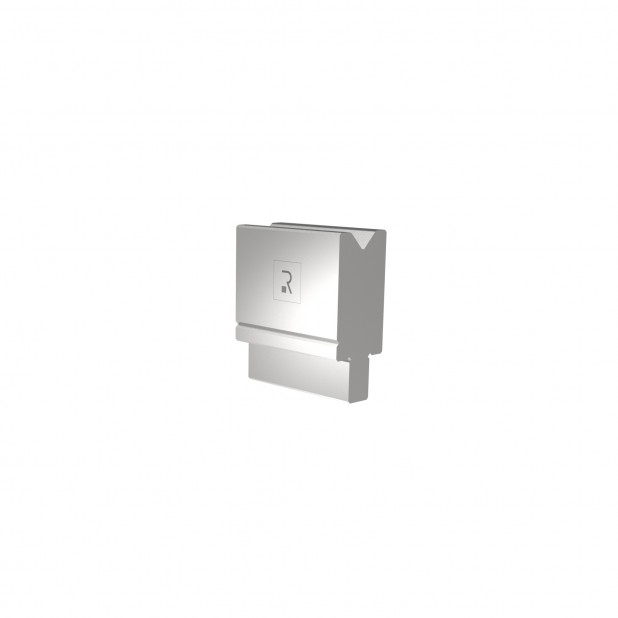

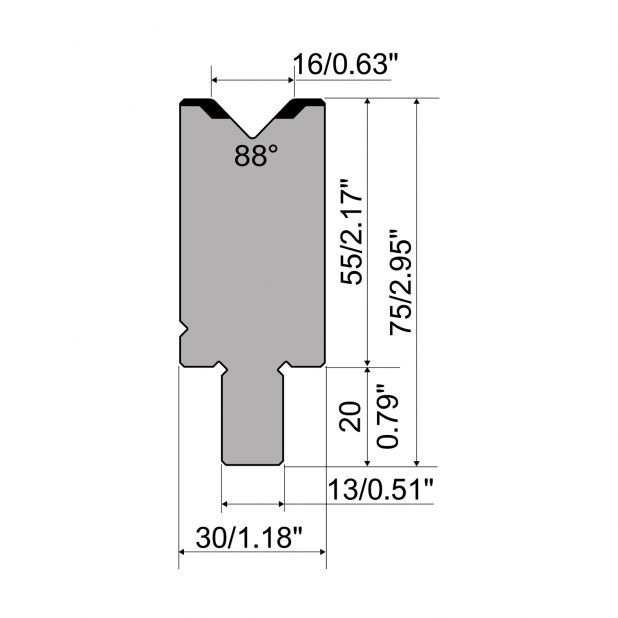

Die R2 type with Working height=55mm, α=88°, Radius=2mm, Material=42Cr, Max. load=1200kN/m.
Die R2 type with Working height=55mm, α=88°, Radius=2mm, Material=42Cr, Max. load=1200kN/m.
  • Description
  • Features
  • Attachments

Die R2 type with Working height=55mm, α=88°, Radius=2mm, Material=42Cr, Max. load=1200kN/m.

1100 mm F
550 mm FW
