Punch insert rooftop - special shape

Article No. Quality Dimensions Weight Price
2VRATT Extreme Line 0 - 30 mm 0.1
2VRATS Supreme Line 0 - 30 mm 0.1
2VRATB Power Line 0 - 30 mm 0.1
2WRATT Extreme Line 30 - 56 mm 0.1
2WRATS Supreme Line 30 - 56 mm 0.1
2WRATB Power Line 30 - 56 mm 0.1
  • Description
  • Features
  • Attachments

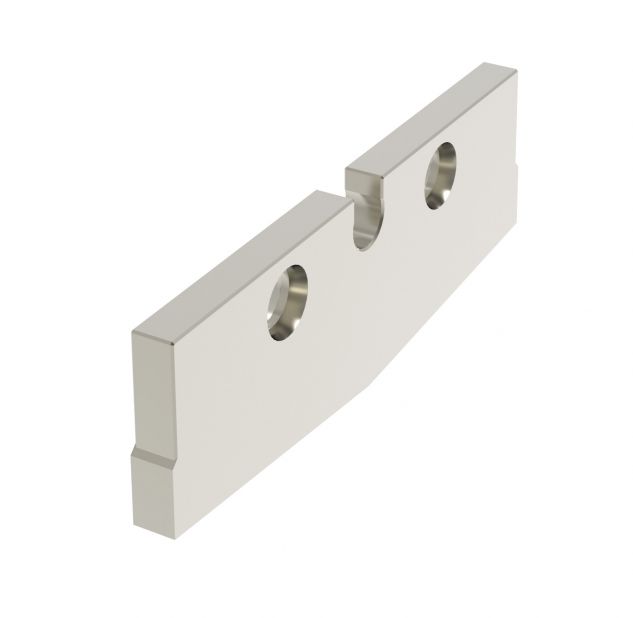

Punch insert rooftop, special shape. Dimensions 0x30 e 30x56 mm.

EXTREME LINE

Included RLP-HPL coating or RLP - Zinc Free coating of your choice.

In order to help you choose the right tool for your application, Rolleri offers this guide:

  • Hit rate application: Extreme (>380 H.P.M.)
  • Machine type: Servo Electric/High Speed Hydraulic
  • Material type-Toughness: Hard (Tensile Strength > 45 kg/mm²)
  • Material thickness: Thick (> 3 mm)
  • Punching operation: Nibbling
  • Amount of Hits for the Job: Big (>10000 hits)

SUPREME LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

  • Hit rate application: High (200~380 H.P.M.)
  • Machine type: Hydraulic
  • Material type-Toughness: Medium (Tensile Strength 22~45 kg/mm²)
  • Material thickness: Medium (1.5~3mm)
  • Punching operation: Partial Hit (>50% of punch surface)
  • Amount of Hits for the Job: Medium (5000~10000 hits)

POWER LINE

In order to help you choose the right tool for your application, Rolleri offers this guide:

  • Hit rate application: Normal (<200 H.P.M.)
  • Machine type: Mechanic
  • Material type-Toughness: Easy (Tensile Strength 7~25 kg/mm²)
  • Material thickness: Thin (<1,5 mm)
  • Punching operation: Full Hit
  • Amount of Hits for the Job: Small (<5000 hits)

Die ass.

Die ass. (no blade) with die shim packages included.
