Lower assembly | 4 stations
Lower assembly for multitool 4 stations. Compatible with tools type Trumpf and punching machines Trumpf Serie 100.

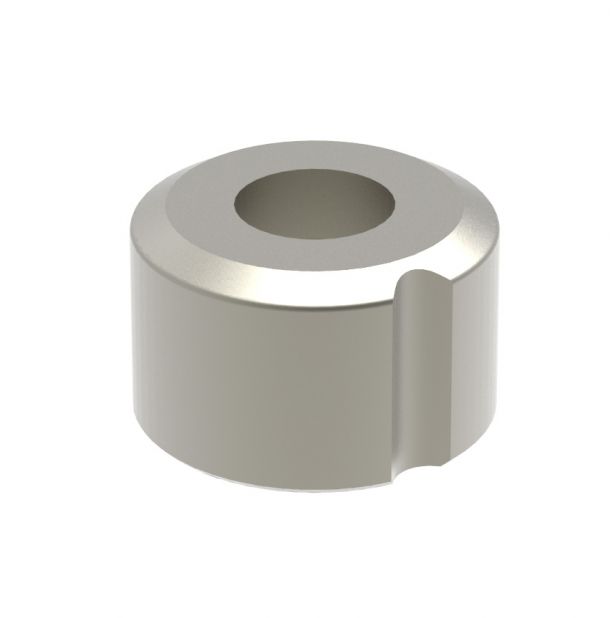

Die MT4
CALCULATE THE DIE CLEARANCE
| Article No. | Shape | Quality | Dimensions | Die clearence | Price | |
|---|---|---|---|---|---|---|
| 94DRTT |
 |
Extreme Line | mm Ø |
|
||
| 94DQTT |
 |
Extreme Line | mm |
|
||
| 94DETT |
 |
Extreme Line | mm |
|
||
| 94DOTT |
 |
Extreme Line | mm | mm |
|
|
| 94DRTS |
|
Supreme Line | mm Ø | mm |
|
|
| 94DQTS |
|
Supreme Line | mm | mm |
|
|
| 94DETS |
|
Supreme Line | mm | mm |
|
|
| 94DOTS |
|
Supreme Line | mm | mm |
|
|
| 94DRTB |
|
Power Line | mm Ø | mm |
|
|
| 94DQTB |
|
Power Line | mm | mm |
|
|
| 94DETB |
|
Power Line | mm | mm |
|
|
| 94DOTB |
|
Power Line | mm | mm |
|
- Description
- Features
Die for multitool 4 stations. Compatible with tools type Trumpf and punching machines Trumpf Serie 100.
EXTREME LINE
Included RLP-HPL coating or RLP - Zinc Free coating of your choice.
In order to help you choose the right tool for your application, Rolleri offers this guide:
- Hit rate application: Extreme (>380 H.P.M.)
- Machine type: Servo Electric/High Speed Hydraulic
- Material type-Toughness: Hard (Tensile Strength > 45 kg/mm²)
- Material thickness: Thick (> 3 mm)
- Punching operation: Nibbling
- Amount of Hits for the Job: Big (>10000 hits)
SUPREME LINE
In order to help you choose the right tool for your application, Rolleri offers this guide:
- Hit rate application: High (200~380 H.P.M.)
- Machine type: Hydraulic
- Material type-Toughness: Medium (Tensile Strength 22~45 kg/mm²)
- Material thickness: Medium (1.5~3mm)
- Punching operation: Partial Hit (>50% of punch surface)
- Amount of Hits for the Job: Medium (5000~10000 hits)
POWER LINE
In order to help you choose the right tool for your application, Rolleri offers this guide:
- Hit rate application: Normal (<200 H.P.M.)
- Machine type: Mechanic
- Material type-Toughness: Easy (Tensile Strength 7~25 kg/mm²)
- Material thickness: Thin (<1,5 mm)
- Punching operation: Full Hit
- Amount of Hits for the Job: Small (<5000 hits)
Upper assembly | 4 stations
Upper assembly for multitool 10 stations. Compatible with tools type Trumpf and punching machines Trumpf Serie 100.
Die Shims MT4
Die shims for multitool 5 stations. Compatible with tools type Trumpf and punching machines Trumpf Serie 100.
Punch MT4
Punch for multitool 4 stations. Compatible with tools type Trumpf and punching machines Trumpf Serie 100.
