T-UP PN R1800 | POWER LINE

Article No. Dimensions Price
T-UP PN R1800 M2-M12 6 bushes from M2 to M12
  • Description
  • Features
  • Attachments

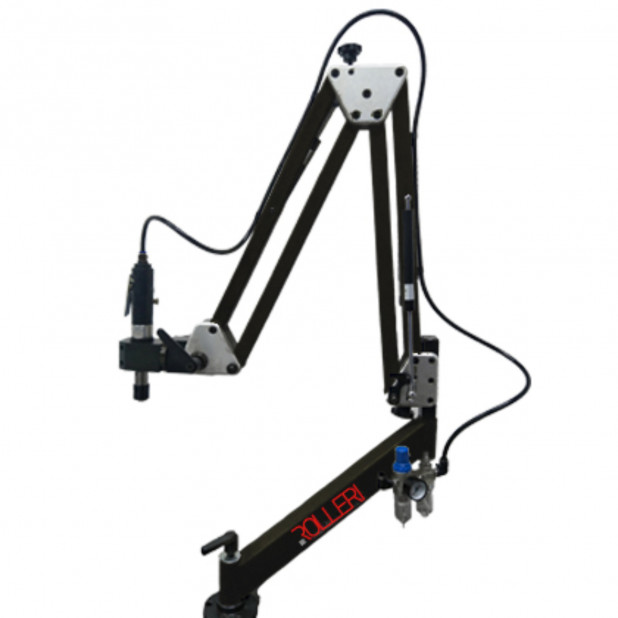

Pneumatic threading machine with working area = 1800mm, 6 bushes from M2 to M12, universal head. Max speed 250rpm; Torque 76 N / m.

TECHNICAL FEATURES

Tapping capacity M2-M12 (1/16-1/2”)
Tapping direction Universal
Working area [mm] 1800
Spindle size [mm] Φ19
Torque [N/m] 76
Air pressure [MPa] 0.8
Speed [r.p.m] 250
  • Triple articulated arm, balanced and entirely in aluminum which guarantees high stability;
  • Wide working range: it allows to work with a radius of 1800 mm.

WORK TIME

The pneumatic tappers of this series can work 8 hours without interruption.

T-UP PN R915 | POWER LINE

Pneumatic threading machine, with working area = 915mm, 6 bushes from M2 to M12, vertical head. Max speed 600rpm; Torque 36 N / m.
