T-UP EL R1800 | EXTREME LINE

Article No. Dimensions Price
T-UP EL R1800 M3-M12 6 bushes from M3 to M12
T-UP EL R1800 M3-M16 6 bushes from M3 to M16
  • Description
  • Features
  • Attachments

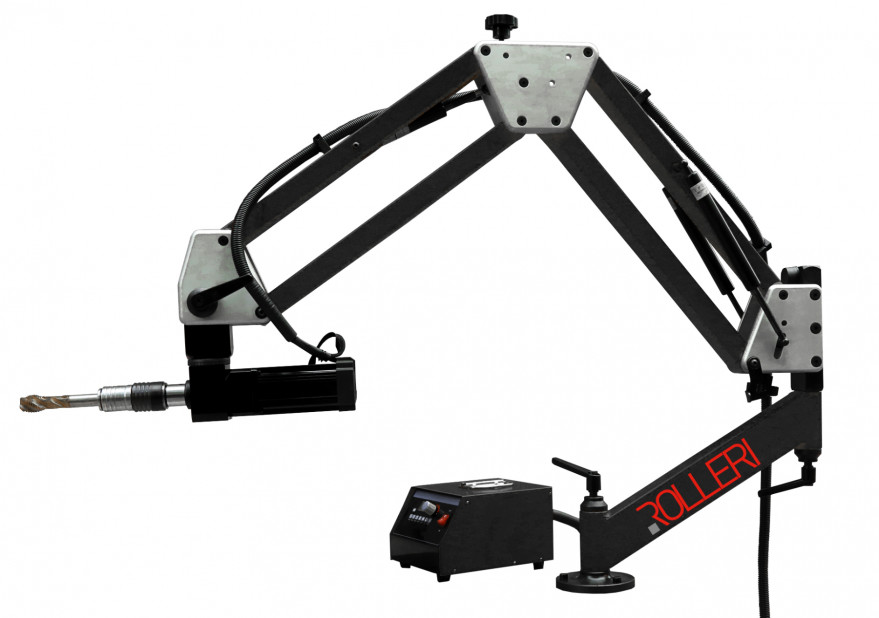

Electric threading machine with working area = 1800mm, 6 bushes, universal head for vertical and horizontal movement.

T-UP EL R1800 M3-M12

Tapping capacity M3-M12 (1/8-1/2”)
Tapping direction Universal
Working area [mm] 1800
Spindle size [mm] Φ19
Torque [N/m] 30
Air pressure [MPa] 1
Speed [r.p.m] 0 - 600

T-UP EL R1800 M3-M16

Tapping capacity M3-M16 (1/8-5/8”)
Tapping direction Universal
Working area [mm] 1800
Spindle size [mm] Φ19
Torque [N/m] 50
Air pressure [MPa] 1.2
Speed [r.p.m] 0 - 250
  • Arm designed to guarantee high stability and precise alignment of the holes;
  • The special control system with which this T-UP model is equipped allows the setting of depth, speed and repeatability making it easy to use even for less experienced operators;
  • Large working area that allows you to work comfortably with a radius of 1800 mm.

WORK TIME

The pneumatic tappers of this series can work 8 hours without interruption.
