T-UP EL R1300 | EXTREME LINE

Article No. Dimensions Price
T-UP EL R1300 M6-M42 6 bushes from M6 to M42
T-UP EL R1300 M30-M60 6 bushes from M30 to M60
T-UP EL R1300 M30-M68 6 bushes from M30 to M68
  • Description
  • Features
  • Attachments

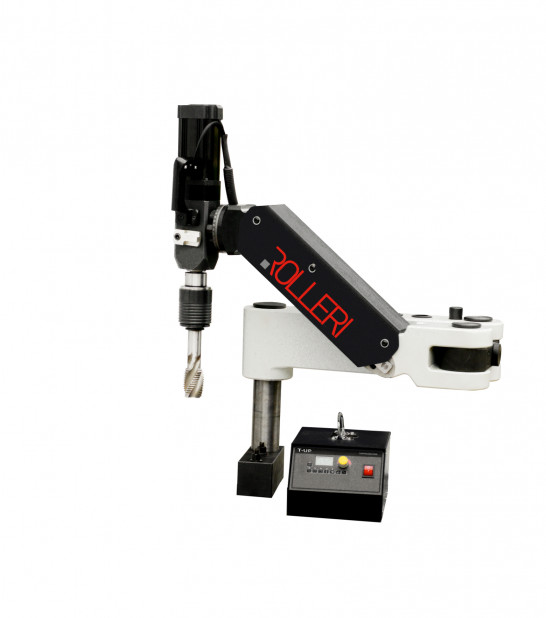

Electric threading machine with working area = 1300mm, 6 bushes, head for vertical and horizontal movement.

T-UP EL R1300 M6-M42

Tapping capacity M6-M42
Tapping direction Vertical and horizontal
Working area [mm] 1300
Spindle size [mm] Φ48
Torque [N/m] 600
Power [Kw] 1.8
Speed [r.p.m] 0 - 30/0 - 100



T-UP EL R1300 M30-M60

Tapping capacity M30-M60
Tapping direction Vertical and horizontal
Working area [mm] 1300
Spindle size [mm] Φ48
Torque [N/m] 1300
Power [Kw] 2.2
Speed [r.p.m] 0 - 20



T-UP EL R1300 M30-M68

Tapping capacity M30-M68
Tapping direction Vertical
Working area [mm] 1300
Spindle size [mm] Φ48
Torque [N/m] 2000
Power [Kw] 2.2
Speed [r.p.m] 0 - 20



  • 2-speed reducer (with speed 0-30 r.p.m. and 0-100 r.p.m.) easily controlled by a rotating knob;
  • Adjustable base with possibility of extension (100 cm) of the tapping area;
  • Ideal for use in different industries and with different materials, especially for tapping on heavy and large workpieces with a hardness of 40 HRC.

WORK TIME

The pneumatic tappers of this series can work 8 hours without interruption.
