T-UP EL R1100 | EXTREME LINE

Article No. Dimensions Price
T-UP EL R1100 M5-M24 6 bushes from M5 to M24
T-UP EL R1100 M5-M30 6 bushes from M5 to M30
  • Description
  • Features
  • Attachments

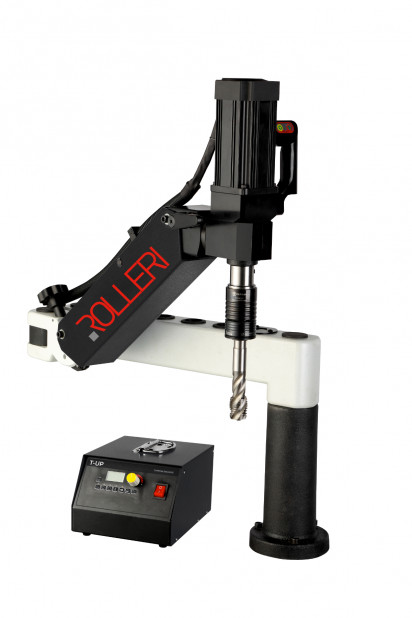

Electric threading machine with working area = 1100mm, 6 bushes, head for vertical and horizontal movement.

T-UP EL R1100 M5-M24

Tapping capacity M5-M24 (3/16-15/16”)
Tapping direction Vertical and horizontal
Working area [mm] 1100
Spindle size [mm] Φ31
Torque [N/m] 250
Power [Kw] 1.2
Speed [r.p.m] 0 - 150

T-UP EL R1100 M5-M30

Tapping capacity M5-M24 (3/16-15/16”)
Tapping direction Vertical and horizontal
Working area [mm] 1100
Spindle size [mm] Φ31
Torque [N/m] 270
Power [Kw] 1.2
Speed [r.p.m] 0 - 150
  • Arm designed to guarantee high stability and precise alignment of the holes;
  • The 1.2 kw servo motor provides strong power for a torque of 250-270 N.M ensuring continuous tapping;
  • The head allows 90 ° movement for vertical and horizontal tapping;
  • The base is adjustable in height from 40-60mm allowing a wide and effective working range;
  • The special control system of this T-UP model allows the setting of depth, speed and repetitiveness making it easy to use even for less experienced operators.

WORK TIME

The pneumatic tappers of this series can work 8 hours without interruption.
