P.130.88.R06

Article No. Length Weight Price
P.130.88.R06.835 835 mm 9.80
P.130.88.R06.415 415 mm 4.90
P.130.88.R06.795s 795 mm FX 9.30
P.130.88.R06.805s 805 mm F 9.40
P.130.88.R06.900 900 mm 10.60

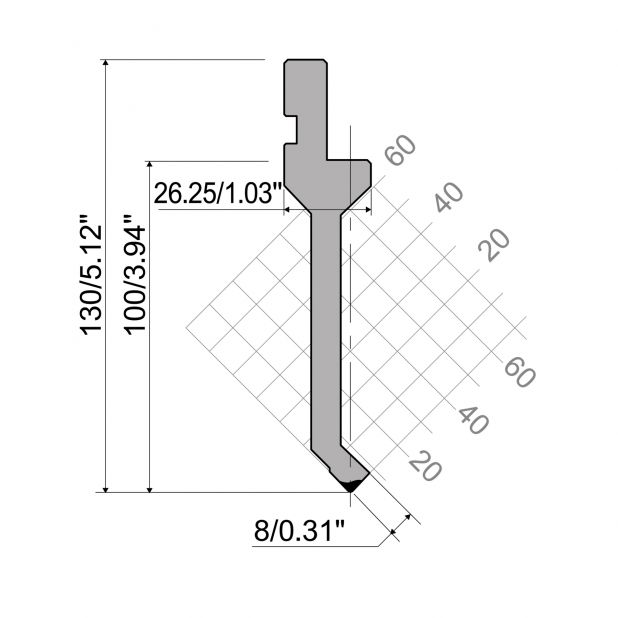

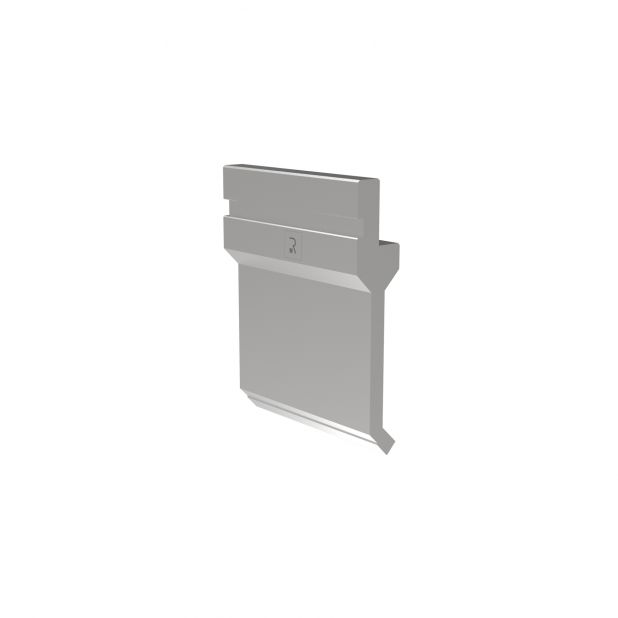

Punch R1 European type with Working height=100mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=350kN/m.
Punch R1 European type with Working height=100mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=350kN/m.
  • Description
  • Features
  • Attachments

Punch R1 European type with Working height=100mm, α=88°, Radius=0,6mm, Material=42Cr, Max. load=350kN/m.

Horn 1
795 mm FX
805 mm F
