CFH60.25.86

Article No. Length Weight Price
CFH60.25.86.415 415 mm 4.60
CFH60.25.86.800 800 mm F 9.00
CFH60.25.86.835 835 mm 9.50
Die R1 CFH serie with working height=mm, α=86°, Radius=3mm, Material=42cr, Max. load=1000kN/m.
Die R1 CFH serie with working height=mm, α=86°, Radius=3mm, Material=42cr, Max. load=1000kN/m.
  • Description
  • Features
  • Attachments

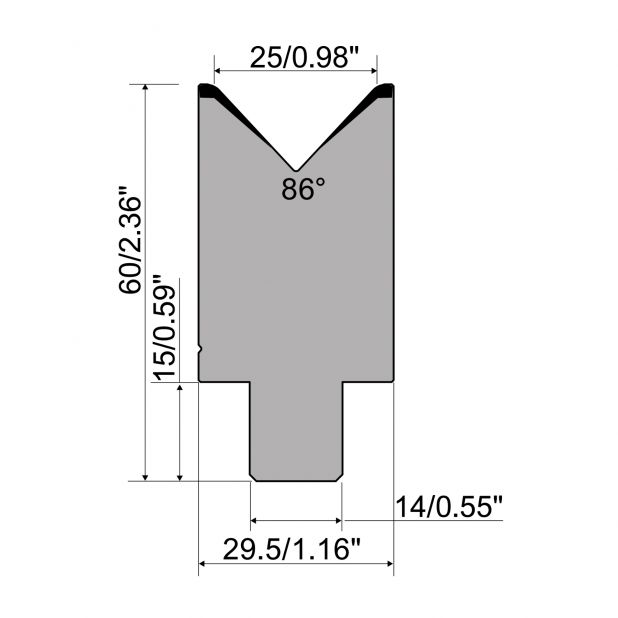

Die R1 CFH serie with working height=60mm, α=86°, Radius=3mm, Material=42cr, Max. load=1000kN/m.

F: 800 mm - 21.49"
mm: 100-300-150-50-40-20-15-15-10-100
in: 3.94-11.81-5.90-1.96-1.57-0.79-0.59-0-59-0.39-3.94

800 mm F
