T-UP EL R915 | EXTREME LINE

Article No. Dimensions Price
T-UP EL R915 M3-M12 6 bushes from M3 to M12
T-UP EL R915 M3-M16 6 bushes from M3 to M16
  • Description
  • Features
  • Attachments

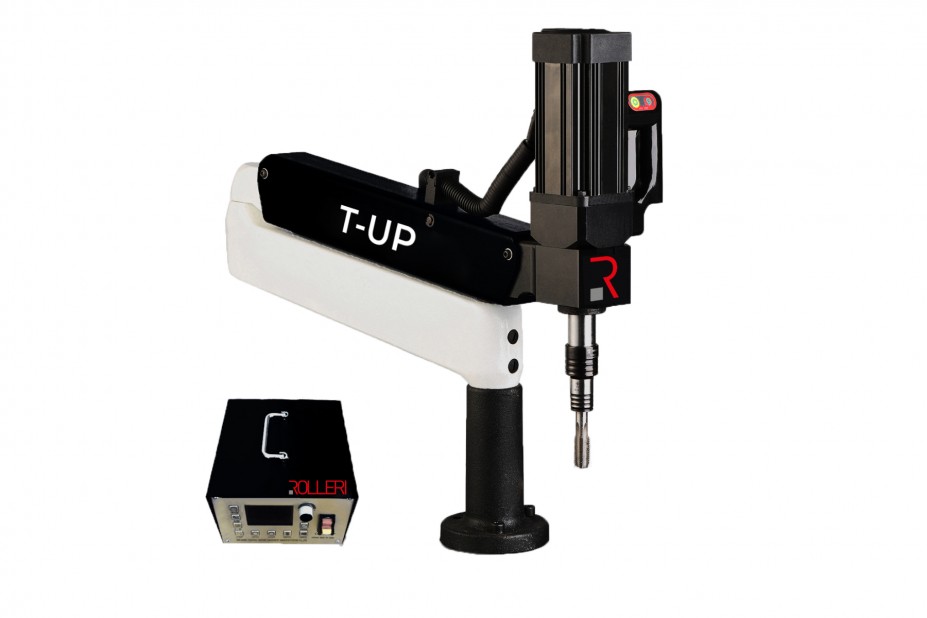

Electric threading machine with working area = 915mm, 6 bushings, vertical head.

T-UP EL R915 M3-M12

Tapping capacity M3-M12 (1/8-1/2”)
Tapping direction Vertical
Working area [mm] 915
Spindle size [mm] Φ19
Torque [N/m] 30
Air pressure [MPa] 1.2
Speed [r.p.m] 0 - 600

T-UP EL R915 M3-M16

Tapping capacity M3-M16 (1/8-5/8”)
Tapping direction Vertical
Working area [mm] 915
Spindle size [mm] Φ19
Torque [N/m] 50
Air pressure [MPa] 1.2
Speed [r.p.m] 0 - 250
  • The net weight of the machine of less than 20 kg allows it to be easily repositioned for processing. For this reason it is the most convenient and simple model to use;
  • The special control system with which this T-UP model is equipped allows the setting of depth, speed and repetitiveness making it easy to use even for less experienced operators;
  • The base is adjustable in height from 40-60mm allowing a wide and effective working range.

WORK TIME

The pneumatic tappers of this series can work 8 hours without interruption.
